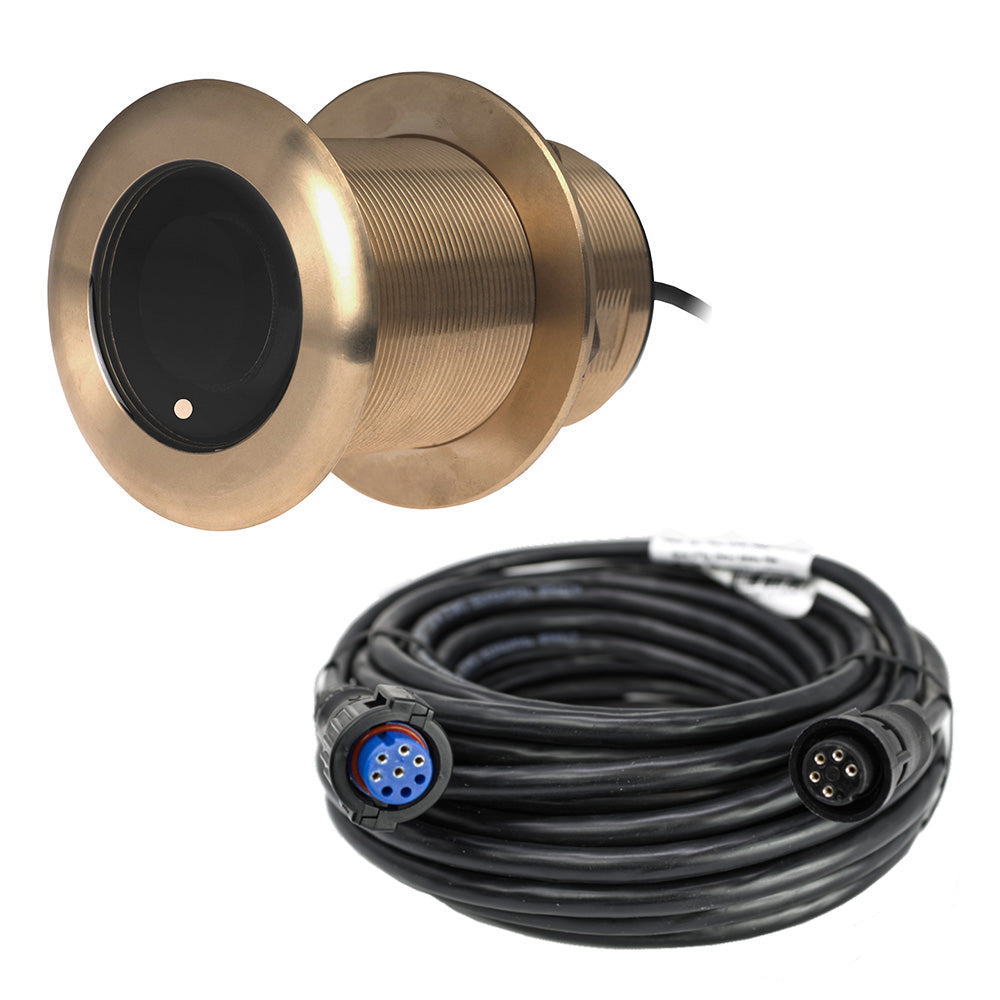

Airmar B60 20 Degree Bronze Tilted Element 600W 8-Pin f/Garmin

Read depth and water temperature aboard your center-console or trailered boat with the Airmar B60 transducer for Garmin. This 20-degree version uses a tilted internal element to direct the beam downward on hulls with 16–24 degrees of deadrise. Its bronze thru-hull housing fits fiberglass or wood hulls.

Key features

• A fixed 20-degree element compensates for the specified hull deadrise, helping direct echoes back to the transducer.
• Dual-frequency operation provides a wider 50 kHz beam and a narrower 200 kHz beam for depth sensing.
• Depth and fast-response water temperature sensing put both measurements in one transducer.
• A housing that projects just 5 mm outside the hull keeps the installation low-profile.

Specifications

• Brand: Airmar
• Model: B60
• Connection: 8-pin for Garmin
• Power rating: 600 W
• Element tilt: 20°
• Hull deadrise range: 16–24°
• Frequencies: 50/200 kHz
• Beamwidths: 45° at 50 kHz; 12° at 200 kHz
• Maximum depth: 1,200 feet at low frequency; 700 feet at high frequency
• Functions: Depth and temperature
• Housing material: Bronze
• Acoustic window material: Urethane
• Hull materials: Fiberglass or wood
• Maximum vessel length overall: 8 m (26 feet)
• Mounting style: Tilted-element thru-hull
• Hull projection: 5 mm (3/16 inch)
• Hole size: 60 mm (2-3/8 inches)
• Usable shaft length: 68.5 mm (2.70 inches)
• Retractable housing: No
• Weight: 1.4 kg (3 lb.)
