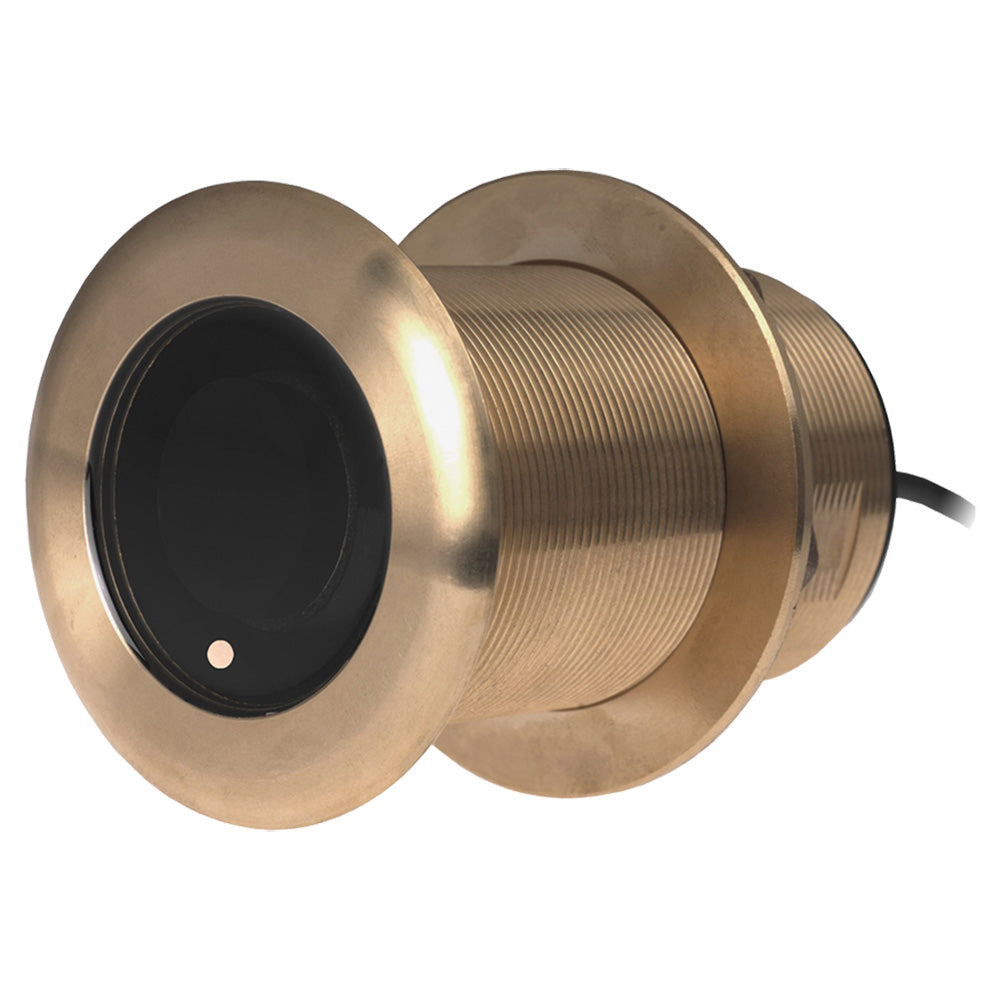

Airmar B60 20° Bronze Thru-Hull Mix & Match Cable Needed

Read depth and water temperature aboard your center-console or trailered boat with the Airmar B60 20° bronze thru-hull transducer. Its angled internal element compensates for hull deadrise to direct the sonar beam downward, and its low-profile housing sits nearly flush with the hull.

Key features

• Dual-frequency operation provides a wide 50 kHz beam and a narrower 200 kHz beam.
• The 20° tilted element directs sound downward despite the hull's angle.
• Depth sensing and fast-response temperature sensing provide two water readings from one transducer.
• A housing that projects just 5 mm outside the hull keeps the installation profile low.
• Bronze housing suits installation in fiberglass or wood hulls.

Specifications

• Model: B60
• Power rating: 600 W
• Frequencies: 50/200 kHz
• Beamwidths: 45° at 50 kHz; 12° at 200 kHz
• Maximum depth: 1,200 ft at low frequency; 700 ft at high frequency
• Functions: Depth and water temperature
• Element tilt: 20°
• Maximum hull deadrise: 24°
• Housing material: Bronze
• Acoustic window material: Urethane
• Hull materials: Fiberglass or wood
• Maximum vessel length overall: 8 m (26 ft)
• Mounting: Tilted-element thru-hull
• Projection outside hull: 5 mm (3/16 inch)
• Hole size: 60 mm (2-3/8 inches)
• Usable shaft length: 68.5 mm (2.70 inches)
• Retractable housing: No
• Weight: 1.4 kg (3 lbs)

Good to know

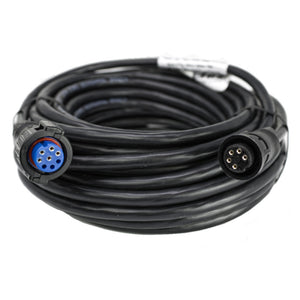

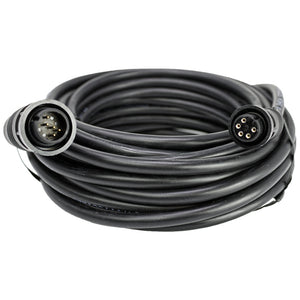

A Mix & Match cable is required.
