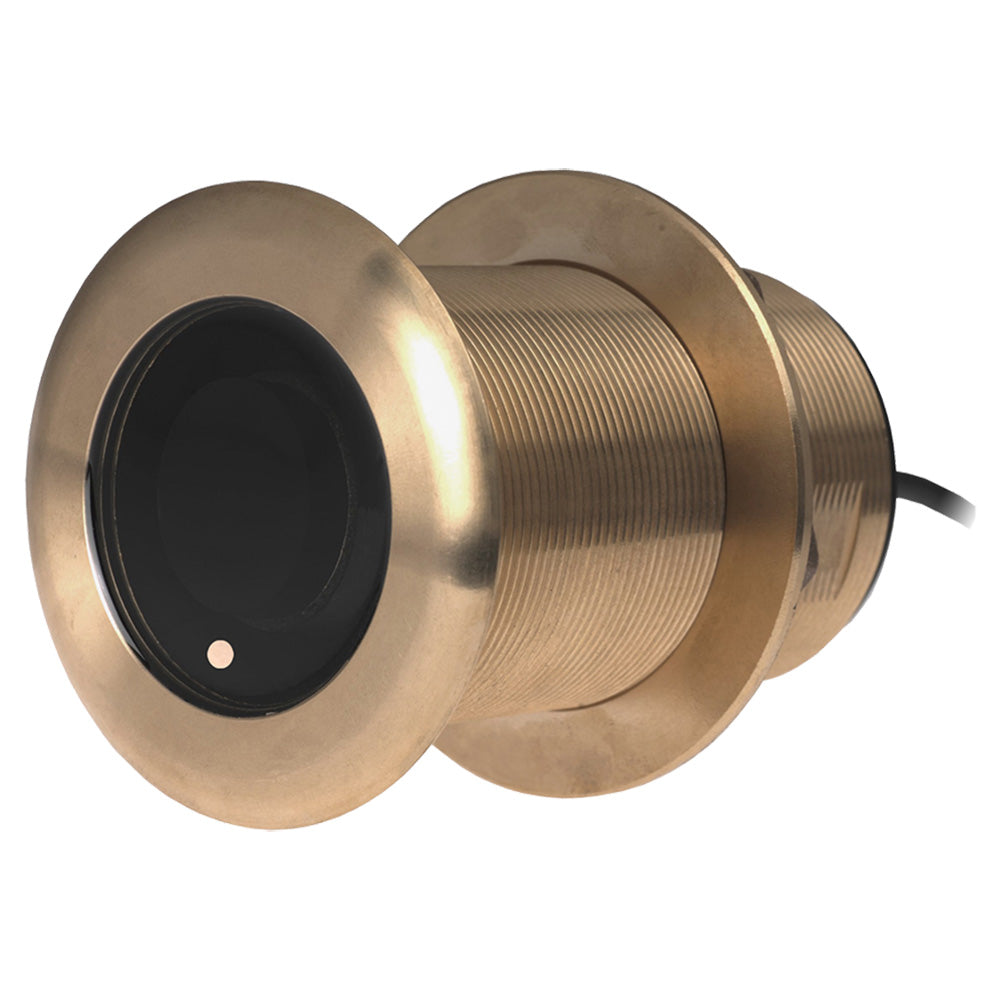

Airmar B60 12 Degree Tilt Thru Hull Req Mix & Match Cable
Airmar B60 12 Degree Tilt Thru Hull Req Mix & Match Cable
SKU:OM-AIRMAR-B6012DEGREE-B6012MM
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
Track depth and water temperature with the Airmar B60 12 Degree Tilt thru-hull transducer. Suited to center-console and trailered boats with fiberglass or wood hulls, its angled internal element compensates for hull deadrise to direct the sonar beam downward.
Key features
- Two frequencies provide a wide 50 kHz beam and a narrower 200 kHz beam for depth sensing.
- The tilted element directs the beam downward while allowing an almost flush hull installation.
- Fast-response temperature sensing adds water-temperature information alongside depth readings.
- A bronze housing projects just 5 mm beyond the hull, keeping the installation low profile.
Specifications
- Brand: Airmar
- Model: B60
- Element tilt: 12°
- Power rating: 600 W
- Frequencies: 50/200 kHz
- Beamwidths: 45° at 50 kHz; 12° at 200 kHz
- Functions: Depth and water temperature
- Housing material: Bronze
- Hull materials: Fiberglass or wood
- Vessel length: Up to 8 m (26 ft)
- Hull projection: 5 mm (3/16 in)
- Hole size: 60 mm (2-3/8 in)
- Usable shaft length: 68.5 mm (2.70 in)
- Acoustic window: Urethane
- Mounting: Non-retractable tilted-element thru-hull
- Weight: 1.4 kg (3 lbs)
Good to know
A Mix & Match cable is required.
Specifications
| Cable Length (Feet) | 7' |
|---|---|
| Imaging | Standard |
| Mounting Style | Thru-Hull |
| Speed Included | No |
| Temperature | Yes |
| Brand | Airmar |
| Manufacturer part # | B60-12-MM |
| UPC | 801769000375 |
| Boxed dimensions | 8 x 6 x 4 in |
| Shipping weight | 3.0 lb |
