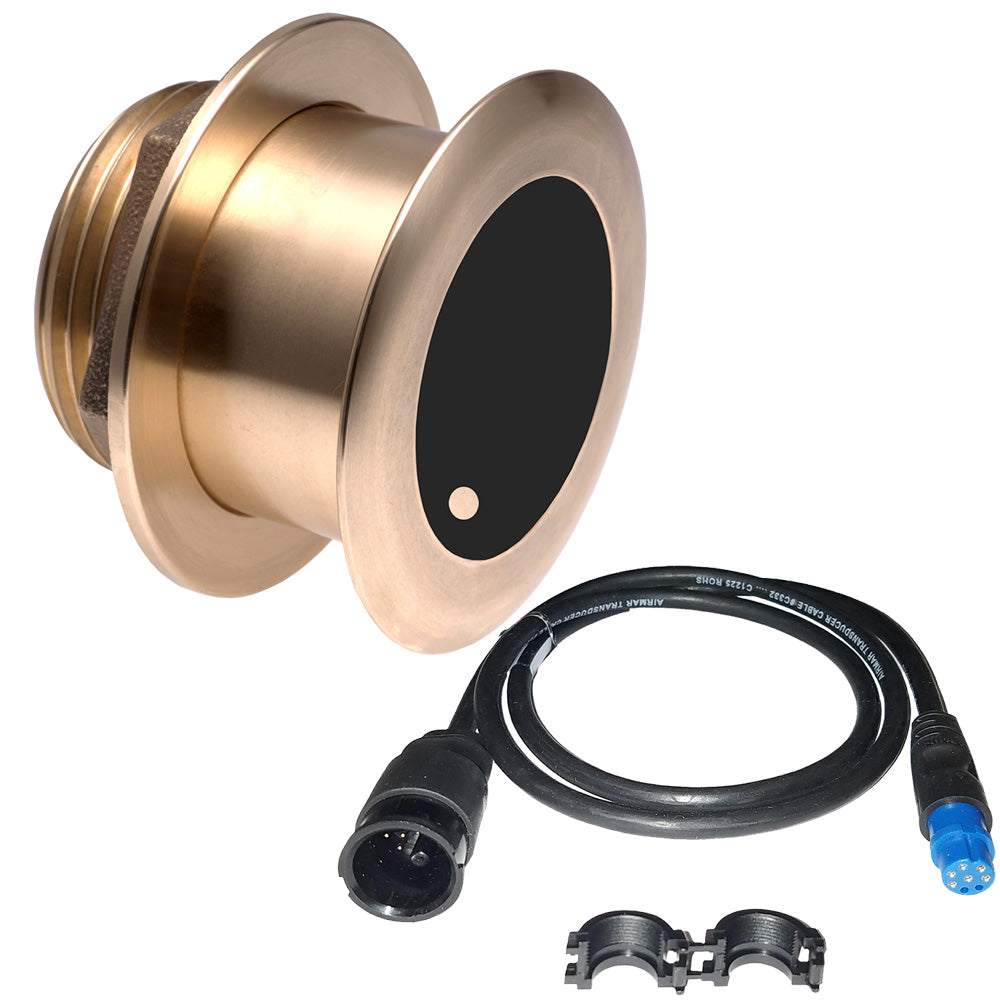

Airmar B175M Bronze 20 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector

B175M Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin Connector

The B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid- to deeper water. Medium frequency also provides excellent shallow-to-mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.

Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features:

• Garmin 8-Pin Mix & Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1 kW of power
• Medium frequency: 85 to 135 kHz
• 16° to 11° beamwidth
• Maximum depth of 457 m (1500')
• 50 kHz of total bandwidth from one transducer
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount
• Patented Xducer ID® technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
• Usable Shaft Length: 55 mm (2.18")
• Mounting Style: Tilted Element Thru-Hull
• Acoustic Window: Urethane
• Common Use: Fishing
• Max Deadrise: Up to 24°
• Max Depth: 457 m (1500')
• Medium Frequency: 85-135 kHz
• Medium Frequency Beamwidth: 16°-11°
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)
