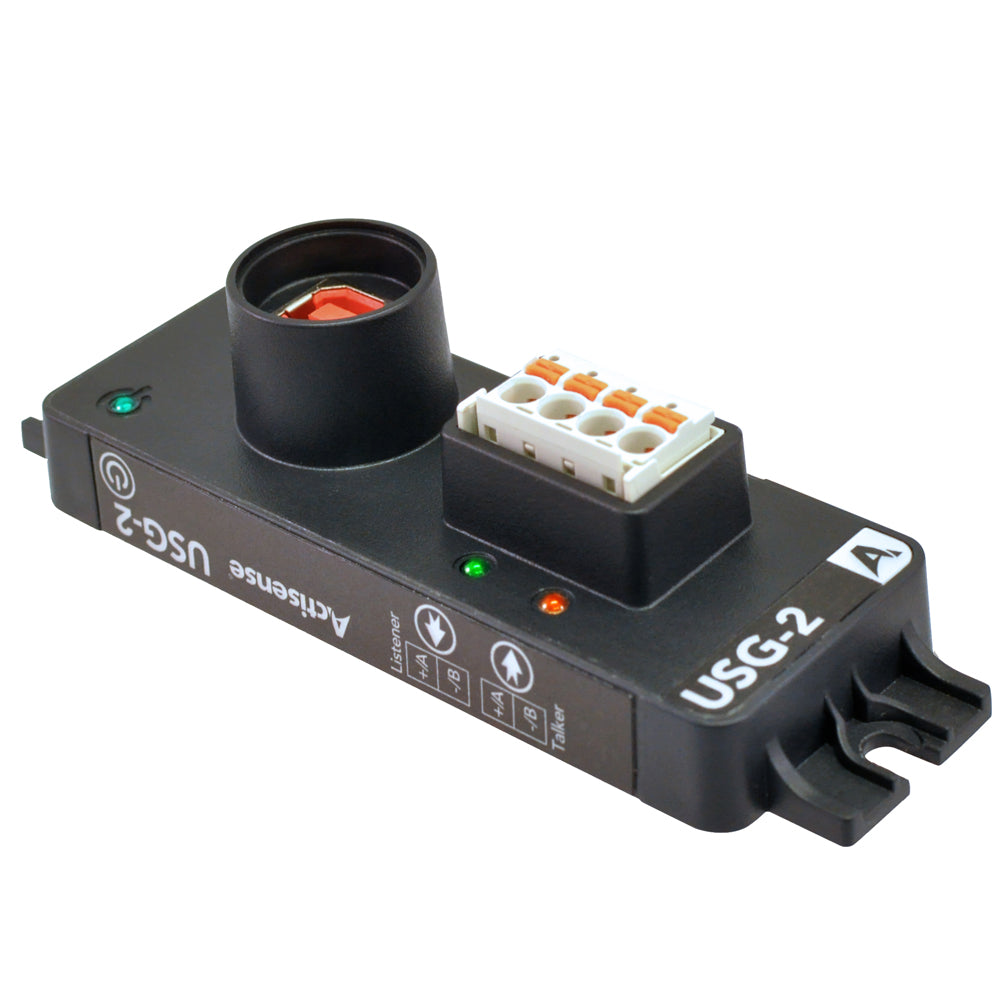

Actisense USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 and RS232

The Actisense USG-2 is an isolated USB-to-serial gateway for linking a PC with NMEA 0183, RS422, and RS232 marine data connections. It is built for onboard installations where isolation, protected inputs and outputs, and a secure USB connection are required.

• Function: Converts USB to a bi-directional serial port for NMEA 0183 data bus connections
• Compatibility: NMEA 0183, RS422, RS232, and RS485 Listener compatible
• Ports: One isolated NMEA 0183 Listener input and one isolated NMEA 0183 Talker output
• Isolation: ISO-Drive output and OPTO-isolated input with galvanic isolation for Talker and Listener
• Power: USB bus powered
• Maximum bus current: 50mA
• NMEA baud rate: 4800 to 230400 bps
• USB baud rate: 300 to 230400 baud
• USB compatibility: USB 1.1, 2.0, and 3.0
• Connector: Pluggable screwless connector with locking latch and integrated push-button
• Wire range: 12 to 24 AWG solid or stranded wire
• Talker output voltage drive: Greater than 2.0V differential into 100 ohms
• Talker output current drive: 20mA maximum
• Listener input voltage tolerance: -15V to +15V continuous
• Listener input protection: Current limited, overdrive protection to 40V DC, and ESD protection
• USB connector: High retention type-B receptacle with supplied cable and custom USB Type-B sealing plug
• Withdrawal force: 1.5Kg
• Mounting: Bulkhead mount, with optional DIN rail mount kit
• Indicators: Diagnostic and power LEDs
• Electronics: Encapsulated electronics
