• Actisense Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed
1 1

Actisense

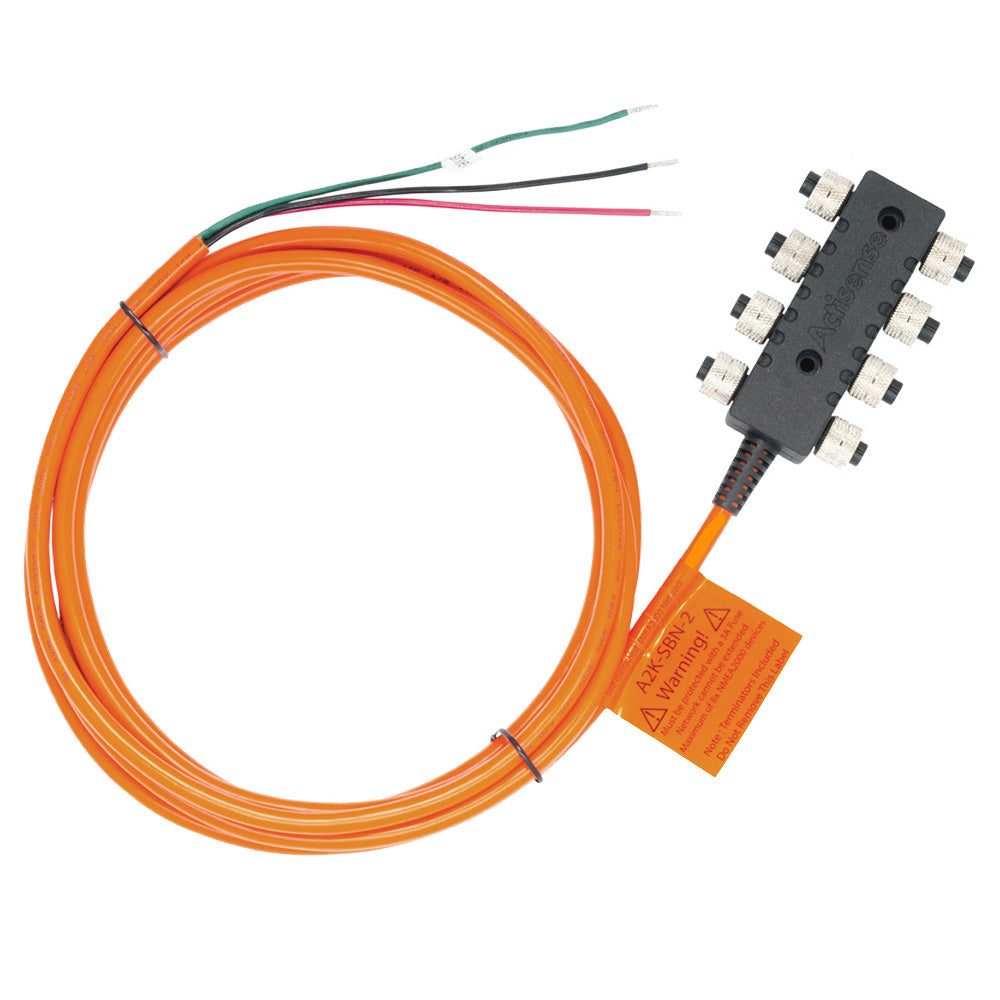

Actisense Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed

Actisense Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power Feed

OM-ACTISENSE-SELFCONTAINEDB-A2KSBN2

$144.22
$155.92 $144.22
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NMEA 2000Data Interface
3mCable Length (Meters)

Bring up to eight NMEA 2000 devices together with the Actisense Self-Contained Boat Network. For boat owners installing a compact network, it combines eight drops, termination resistors and an attached power cable in one housing to simplify setup.

Key features

  • Eight connections in one case replace a chain of separate T-pieces, reducing installation space and component count.
  • Built-in termination resistors remove the need to fit separate terminators.
  • The attached power cable has color-coded, stripped and tinned wires to make connection quicker.
  • Integrated shielding helps reduce susceptibility to electromagnetic interference.
  • A rugged, flame-retardant housing suits harsh marine conditions, with IP67 protection when connections are mated.
  • Metal coupling nuts support secure, lasting connections.

Specifications

  • Brand: Actisense
  • Model: Self-Contained Boat Network (SBN)
  • Network standard: NMEA 2000
  • Device drops: 8
  • Rated current: 3 A
  • Rated voltage: 60 V AC/DC
  • Internal termination resistors: 2 × 120 Ω, 250 mW
  • Female contacts: Gold-plated phosphor bronze
  • Contact carrier: Black PA66, 30% glass filled
  • Contact polarization: Standard M12 A
  • Mating thread: M12
  • Screw cap: Nickel-plated brass
  • O-ring seal: Black rubber
  • Housing: Halogen-free TPU over epoxy-filled PBT
  • Flammability rating: UL94 V-0
  • Internal housing shield: Copper foil
  • Power cable: Orange, UL rated
  • Cable jacket: PVC, nominal thickness 0.8 mm
  • Cable outer diameter: 6.8 mm
  • Cable length: 3 m
  • Wire length: 150 mm, with 10 mm stripped and tinned
  • Wire jackets: Red and black PVC
  • Wires: 16 AWG, stripped and tinned
  • Drain: 18 AWG, 34-strand tinned copper
  • Cable shield: Al-mylar
  • Weight: 410 g
  • Ingress protection: IP67 when mated
  • Operating temperature: -25°C to +70°C
  • Storage temperature: -40°C to +85°C

Good to know

The termination resistors and 3 m power lead are integrated into the unit. Connect the attached lead to the boat's power supply to power the network.

Specifications

Data InterfaceNMEA 2000
Cable Length (Meters)3m
BrandActisense
Manufacturer part #A2K-SBN-2
UPC5060998710188
Boxed dimensions8 x 6 x 1 in
Shipping weight0.9 lb
Country of originCHINA
