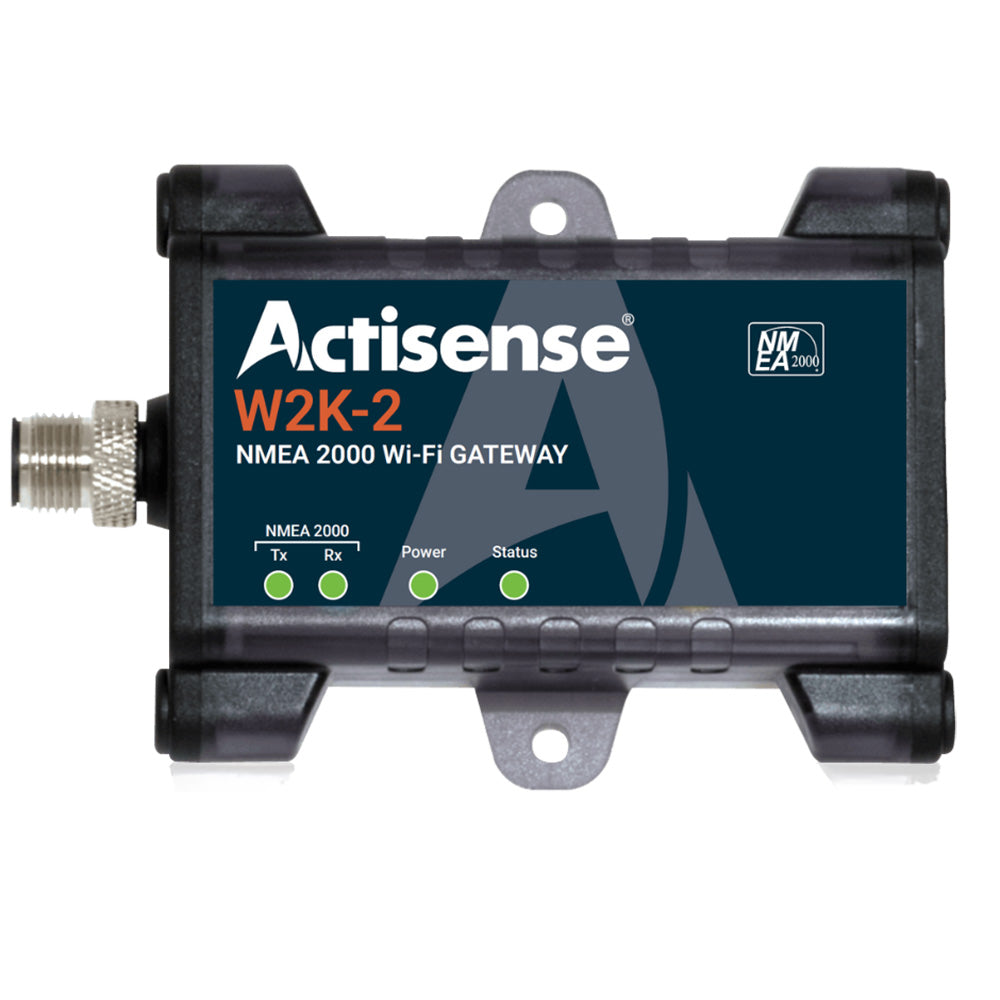

Actisense NMEA2000 to WiFi Gateway

The Actisense W2K-2 connects an NMEA 2000 backbone to Wi-Fi so vessel data can be viewed on a laptop, tablet, or smartphone. It also converts NMEA 2000 data into NMEA 0183 sentences for compatible navigation software and includes onboard logging for later review.

Built-in Actisense-i tools help check the health of the electronics network, including network voltage and connected device status. The rugged IP67 case, internal antenna, diagnostic LEDs, and WPA3 password protection make it suited to marine installations.

• Function: NMEA 2000 to Wi-Fi gateway with NMEA 0183 conversion
• Model: W2K-2
• Data sharing: Sends NMEA 2000 backbone data to Wi-Fi connected devices
• NMEA 0183 support: Converts vessel data such as position, speed, course, wind speed, depth, engine data, and AIS messages
• Wi-Fi modes: Works as an access point and client at the same time
• Protocols: Supports TCP and UDP with up to three separate data servers
• Logging: Records all received data or a selected subset to a micro SD card
• Storage: Supports micro SD cards up to 128GB
• Diagnostics: Includes Actisense-i health checking tools and diagnostic LEDs
• Security: Uses WPA3 password protection
• Power: 2 LEN, 100 mA
• Wireless: Supports 802.11 b/g/h up to 150Mbps
• Case rating: IP67
• Firmware: Remotely upgradeable
