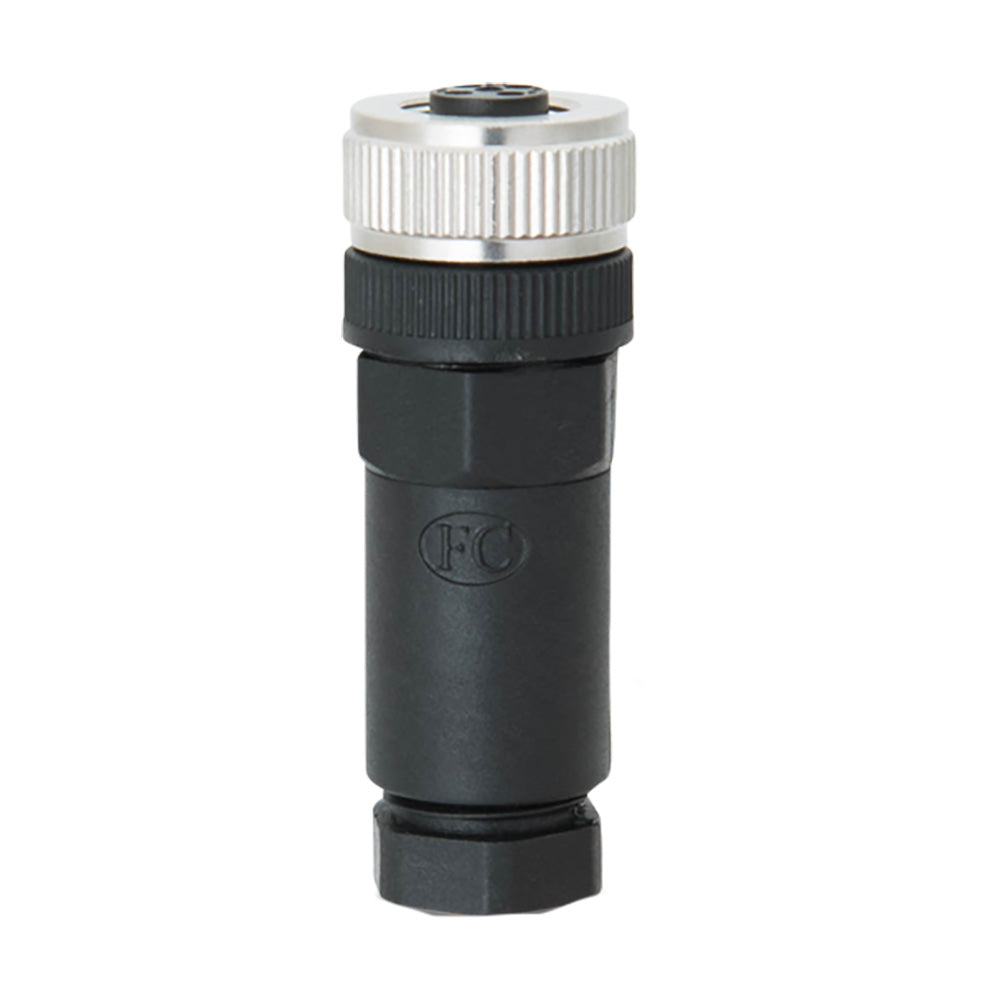

• Actisense NMEA2000 Straight Micro Field Fit Connector - Female
1 1

Actisense

Actisense NMEA2000 Straight Micro Field Fit Connector - Female

Actisense NMEA2000 Straight Micro Field Fit Connector - Female

OM-ACTISENSE-NMEA2000STRAIG-A2KFFCSF

$36.35
$36.35
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 2 left
Authorized Actisense Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

FemaleConnection Gender
NMEA 2000Data Interface
Field ConnectorsNMEA 2000 Connectors

NMEA2000 Straight Micro Field Fit Connector - Female

Field-fit connectors allow full customization of your NMEA 2000 network cabling.

Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.

The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

  • Rated Current - 4A
  • Rated Voltage - 60VDC

Mechanical

  • Connector Contact - Brass, gold plated
  • Wire Gauge/Size - 22 AWG/0.34mm
  • Contact Resistance - ≤ 5 mΩ
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Connector Screw - Stainless Steel
  • Sealing Gland Size - PG9/6-8mm Cable
  • O-Ring Seal - Rubber, black
  • Connector Insert - TPU
  • Connector Body - PA+GF, black
  • Insulation Resistance - ≥ 100 MΩ
  • Weight - 26.5g

Approvals and Certifications

  • Protection - IP67 (in locked condition)
  • Ambient Temperature - -25°C to +90°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Connection GenderFemale
Data InterfaceNMEA 2000
NMEA 2000 ConnectorsField Connectors
BrandActisense
Manufacturer part #A2K-FFC-SF
UPC5060998710058
Boxed dimensions3 x 1 x 1 in
Shipping weight0.1 lb
Country of originCHINA
