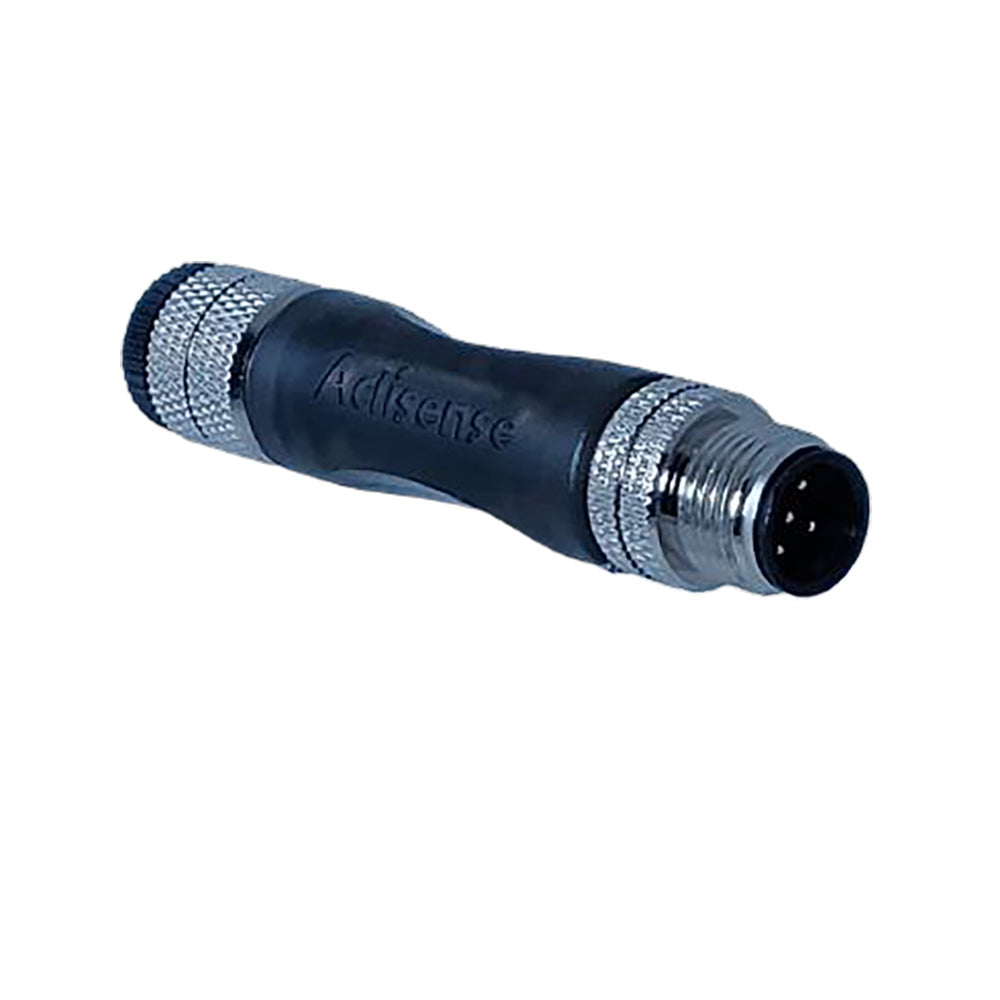

Actisense NMEA2000 Smart Universal Micro Terminator

The Actisense TER-U is a smart micro terminator for NMEA 2000 networks. It can be set up as a male terminator, female terminator, or inline feed-through terminator, giving installers flexibility at network ends or in hard-to-reach locations.

Built-in LEDs provide continuous bus power feedback. Green indicates the bus voltage is in the required range, red indicates it has fallen below the stated threshold, and no light indicates no power or incorrect polarity.

• Network type: NMEA 2000
• Use: Male, female, or inline terminator
• Terminator resistance: 120Ω 1%
• Rated current: 4A
• Rated voltage: 36VDC
• Green LED: NET-S ≥ 9.05V ± 1%
• Red LED: NET-S < 9.05V ± 1%
• Contacts: Gold-plated brass male contact and gold-plated phosphor bronze female contact
• Contact carriers: Black PA66, 30% glass-filled
• Polarization: Standard M12 A polarization
• Mating thread: M12 male and M12 female
• Screw caps: Nickel-plated brass
• Housing: Black PVC
