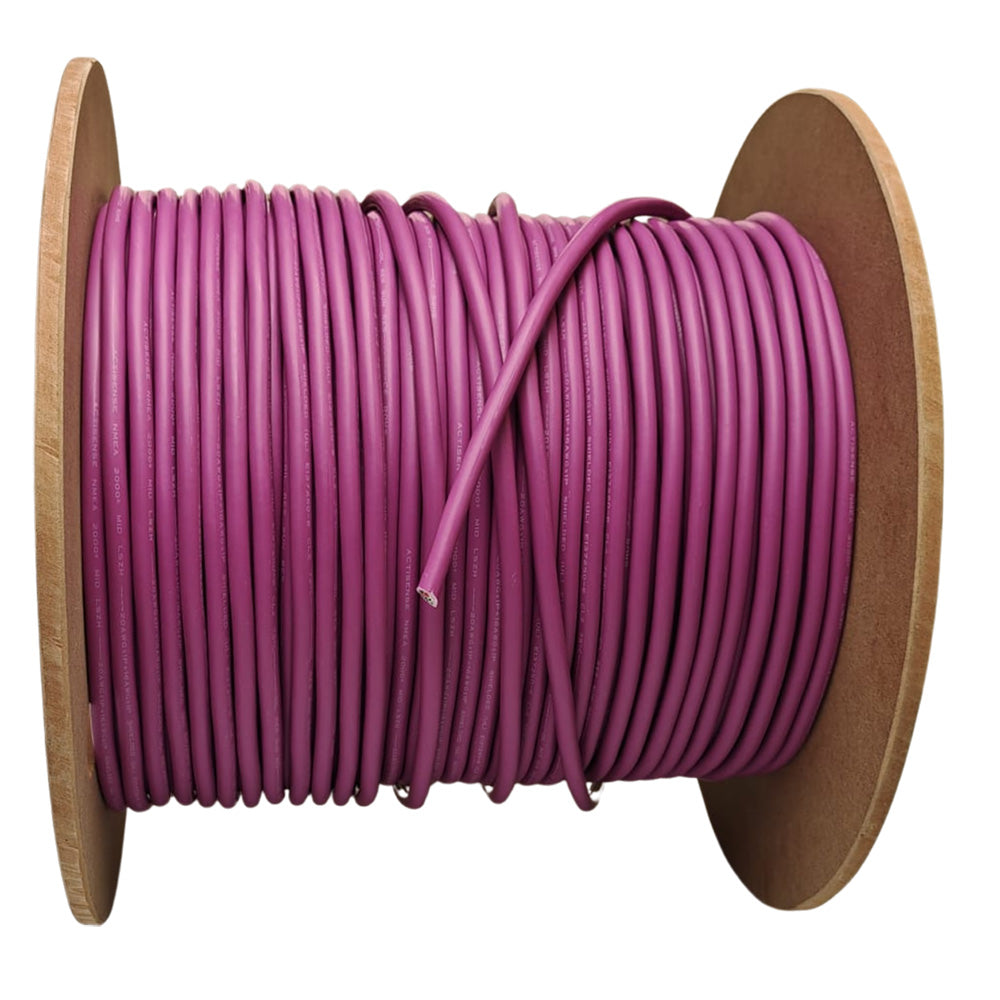

Actisense NMEA2000 Mid Bulk Cable Reel - 100M

Choose cable lengths to suit your boat's network layout with the Actisense NMEA 2000 Mid Bulk Cable Reel. The 100-meter reel supports new installations or extensions and can be used with the Actisense A2K range of network components.

Key features

• Bulk cable lets installers tailor network runs to the installation.
• Five wires carry power, ground and data, with a drain wire connected to the shield.
• Shielding helps protect the internal wires from external radio-frequency interference and reduce cable emissions.
• Mid cable supports backbone layouts up to 250 meters long.
• An LSZH jacket provides a low-smoke, zero-halogen cable option.

Specifications

• Brand: Actisense
• Cable type: NMEA 2000 Mid
• Reel length: 100 m
• Reel weight: 13–14 kg
• Rated voltage: 60 V DC
• Rated current: 8 A
• Current capacity with Micro connectors: 4 A
• Current capacity with Mini connectors: 8 A
• Maximum backbone length: 250 m
• Jacket: LSZH, purple RAL4008
• Outer diameter: 8.2 mm
• Braid: 37 AWG tinned copper
• Braid coverage: 65% nominal
• Overall DCR, braid plus tape plus drain: 3.2 Ω/1000 ft (10.5 mΩ/m)
• Power conductors: 16 AWG, 19-strand tinned copper
• Power insulation: LSZH, 0.17 mm nominal
• Power wire diameter: 1.85 mm nominal
• Power wire colors: Red and black
• Power pair shield: AL Mylar tape
• Power DC resistance: 4.26 Ω/1000 ft (14 mΩ/m)
• Data conductors: 20 AWG, 19-strand tinned copper
• Data insulation: Foam PE, 0.79 mm nominal
• Data wire diameter: 2.49 mm nominal
• Data wire colors: Blue and white
• Data pair shield: AL Mylar tape
• Impedance: 120 Ω ±10% at 1 MHz
• Data DC resistance: 10.9 Ω/1000 ft (35.8 mΩ/m)
• Attenuation at 125 kHz: 0.29 dB/100 ft
• Attenuation at 500 kHz: 0.50 dB/100 ft
• Attenuation at 1 MHz: 0.70 dB/100 ft
• Drain conductor: 20 AWG, 19-strand tinned copper
• Drain DC resistance: 10.9 Ω/1000 ft (35.8 mΩ/m)
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Approval: NMEA 2000 approved
• Compliance: RoHS compliant
• UL certification: E137250, UL13
• LSZH standards: IEC 60754-1/2 and IEC 61034-1/2
