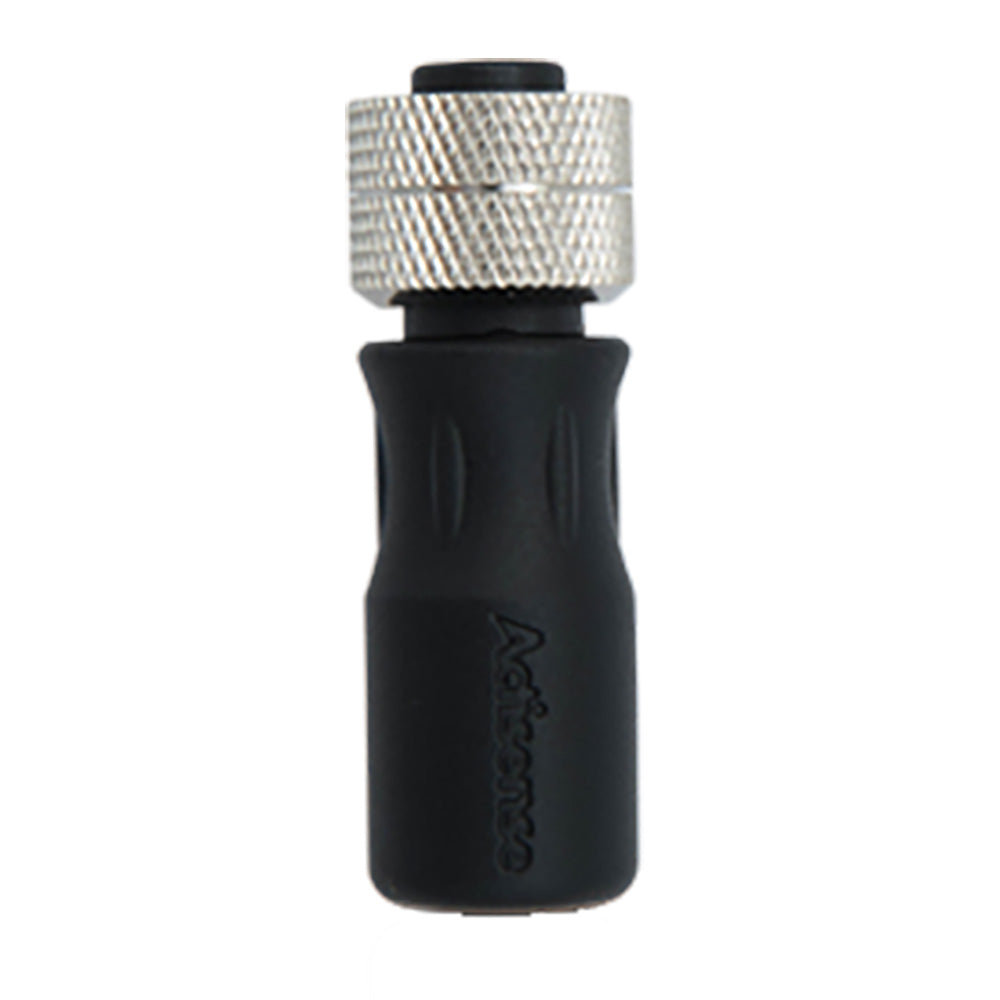

Actisense NMEA2000 Micro Terminator - Female

Actisense NMEA2000 Micro Terminator - Female

OM-ACTISENSE-NMEA2000MICROT-A2KTERF

$24.00
$24.00
Shipping calculated at checkout.

Low stock: 3 left
Authorized Actisense Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

FemaleConnection Gender
NMEA 2000Data Interface
TerminatorsNMEA 2000 Connectors

This Actisense female micro terminator is used at the end of an NMEA 2000 backbone. A correct NMEA 2000 installation uses two termination resistors, with one fitted at each end of the backbone.

  • Brand: Actisense
  • Product type: NMEA 2000 micro terminator
  • Connector: Female
  • Rated voltage: 60VDC on the power pair
  • Rated current: 4A
  • Internal termination resistors: 120 Ω ± 1%, 500mW
  • Female contact: Phosphor bronze, gold plated
  • Contact carrier: PA66, 30% glass filled, black
  • Contact polarization: Standard M12 A polarization
  • Mating thread: M12
  • Screw cap: Brass, nickel plated
  • O-ring seal: Black rubber
  • Housing: Black PVC
  • Weight: 15g
  • Protection: IP67 when mated
  • Operating temperature: -25°C to +70°C
  • Storage temperature: -40°C to +85°C

Specifications

Connection GenderFemale
Data InterfaceNMEA 2000
NMEA 2000 ConnectorsTerminators
BrandActisense
Manufacturer part #A2K-TER-F
UPC5060998710294
Boxed dimensions2 x 1 x 1 in
Shipping weight0.1 lb
Country of originCHINA
