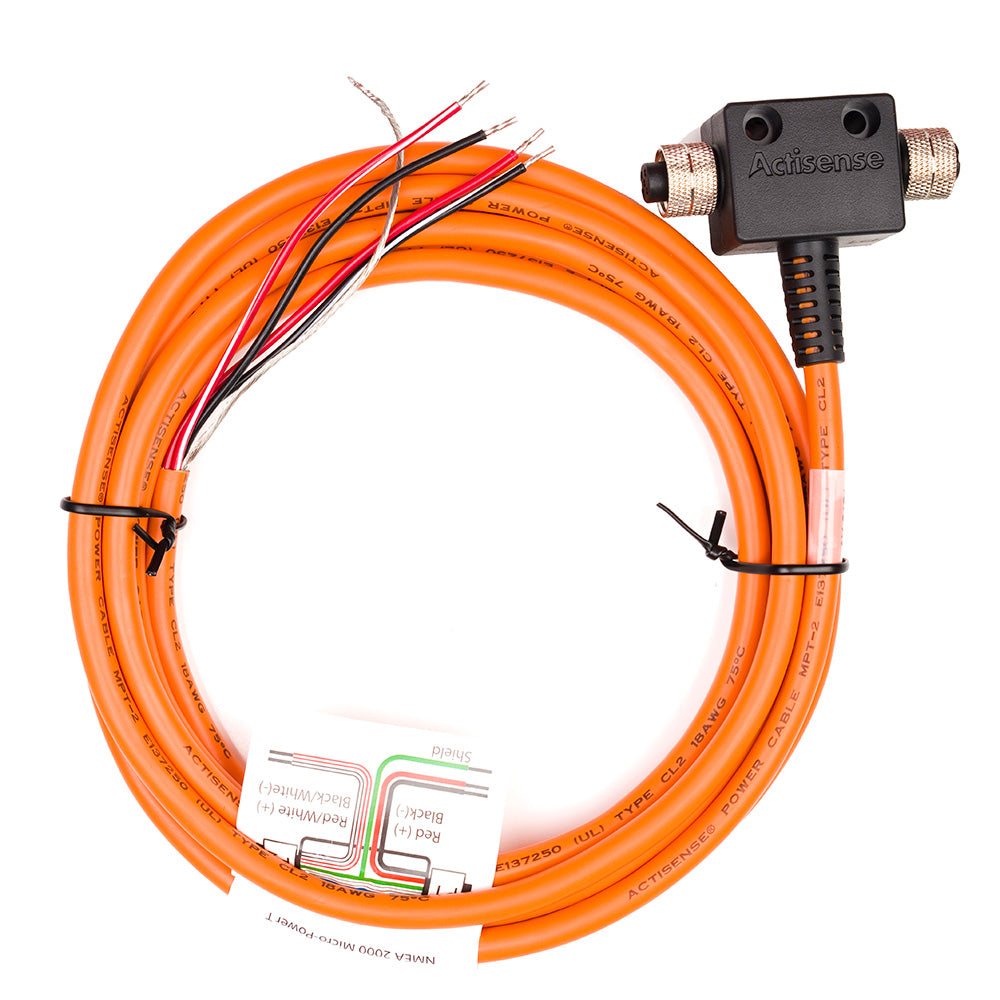

Actisense NMEA2000 Micro T-Piece w/Female Connectors & 3M UL Certified Cable

Bring power to your boat's NMEA 2000 bus with the Actisense A2K-MPT-2 Micro Power T. Its two female connectors and 3-meter cable give installers a plug-in network power connection with room to position the cable during installation.

Key features

• Micro-fit connectors make it straightforward to connect power to the NMEA 2000 bus.
• Two female connectors support DeviceNet compatibility.
• A 3-meter UL-certified cable provides flexibility when positioning the power connection.
• Improved strain relief supports the cable at its connection point.
• Stripped and tinned wires arrive prepared for connection.
• IP67 protection applies when the connectors are mated.

Specifications

• Brand: Actisense
• Model: A2K-MPT-2
• Network: NMEA 2000
• Connectors: 2 female
• Rated current: 4 A per feed
• Rated voltage: 60 VDC
• Cable length: 3 m
• Cable certification: UL certified
• Female contacts: Gold-plated phosphor bronze
• Contact carrier: Black PA66, 30% glass filled
• Contact polarization: Standard M12 A
• Mating thread: M12
• Screw cap: Nickel-plated brass
• O-ring: Black rubber
• Housing: Black PVC
• Cable jacket: Orange PVC, 0.8 mm nominal
• Cable outer diameter: 6.7 mm ±0.254 mm
• Wire length: 100 mm, with 7 mm stripped
• Wires: 18 AWG, stripped and tinned
• Wire jacket: PVC
• Drain: 18 AWG, 34-strand tinned copper
• Shield: Al-mylar
• Weight: 290 g
• Protection: IP67 when mated
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
