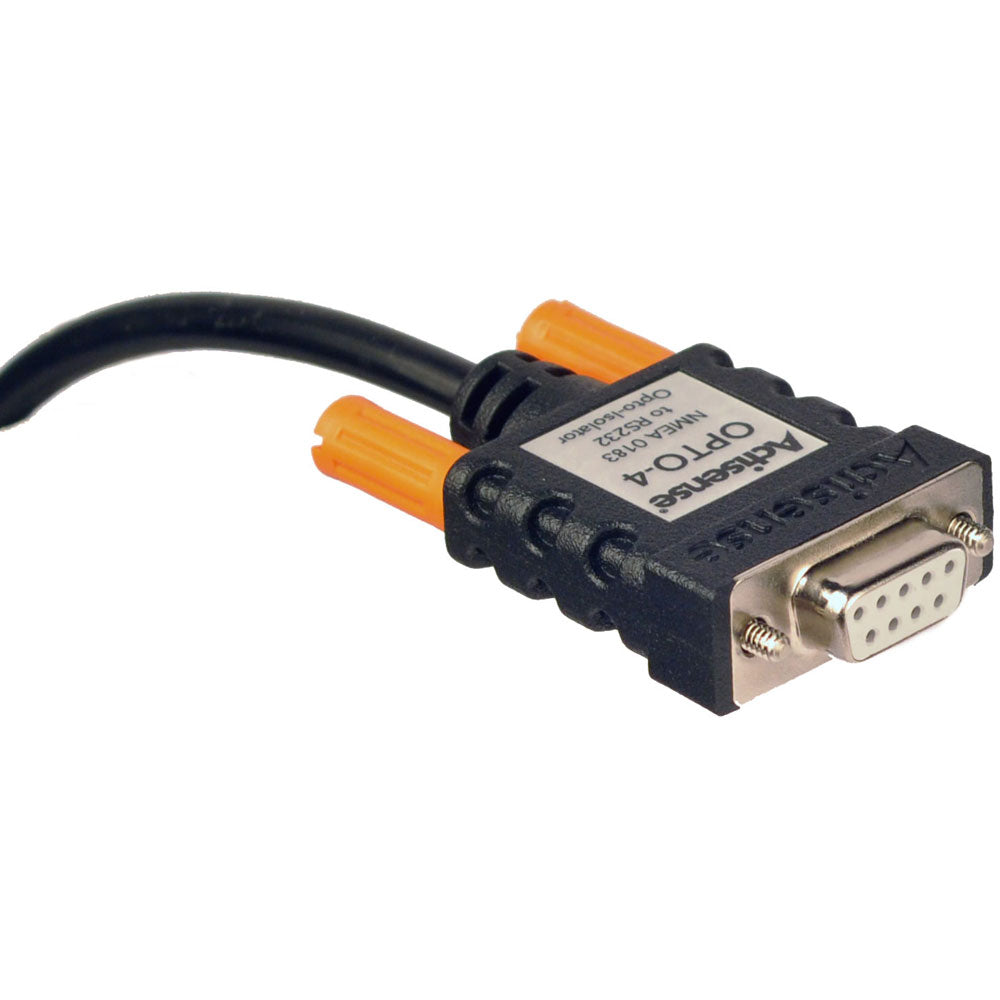

Actisense NMEA 0183 PC OPTO-Isolator Cable, RS232 DB9 Female, Shielded (Isolated to PC)

The Actisense OPTO-4 cable links an RS422 NMEA 0183 system with an RS232 DB9 PC COM port while adding optical isolation. It is intended for installations where NMEA 0183 data needs to reach a computer or RS232 device while reducing the risk of ground-loop damage.

• Brand: Actisense
• Model: OPTO-4
• Connection type: RS232 DB9 female to NMEA 0183 / RS422
• Input: One RS422 opto-isolated input
• Output: One RS422 NMEA 0183 output
• Isolation: 2kV opto-isolation between the red/black NMEA input pair and all other connections
• Baud rate: 4800 to 115200 baud
• Power: Port powered from the RS232 port
• NMEA input voltage: +/-15V continuous maximum, +/-35V maximum for less than 1 second
• Input thresholds: Logic 0 is +2V to +15V; Logic 1 is -15V to 0V
• NMEA output voltage and current: Dependent on host RS232 interface, typically +/-5V to +/-15V at 10mA maximum
• RS232 host voltage: +/-7V to +/-15V
• RS232 current consumption: 2mA to 5mA depending on RS232 voltage
• Housing material: Black PVC
• Thumb screw material: Orange PVC
• Screw: Steel, nickel plated, M2.8 thread
• Connector: 9-pin female DB9
• Cable length: 1.5 m
• Cable wire: 22 AWG (17/34 AWG) tinned stranded copper
• Cable jacket: PVC
• Shield: Internal copper foil shield
• Cable outer diameter: 5.5 mm
• Operating temperature: -20°C to +70°C
• Electrical specification: Meets IEC 61162-2
• UL certification: Cable E137250
• Weight: 100 g
• Guarantee: 3 years
• Return note: This product may not be returned to the original point of purchase; contact the manufacturer directly with issues or concerns.
