• Actisense N2K Micro 4 Way T-Piece
1 1

Actisense

Actisense N2K Micro 4 Way T-Piece

Actisense N2K Micro 4 Way T-Piece

OM-ACTISENSE-N2KMICRO4-A2K4WT

$112.98
$118.00 $112.98
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 5 left
Free standard shipping · every U.S. order, no minimum
Authorized Actisense Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NMEA 2000Data Interface
Tee ConnectorsNMEA 2000 Connectors

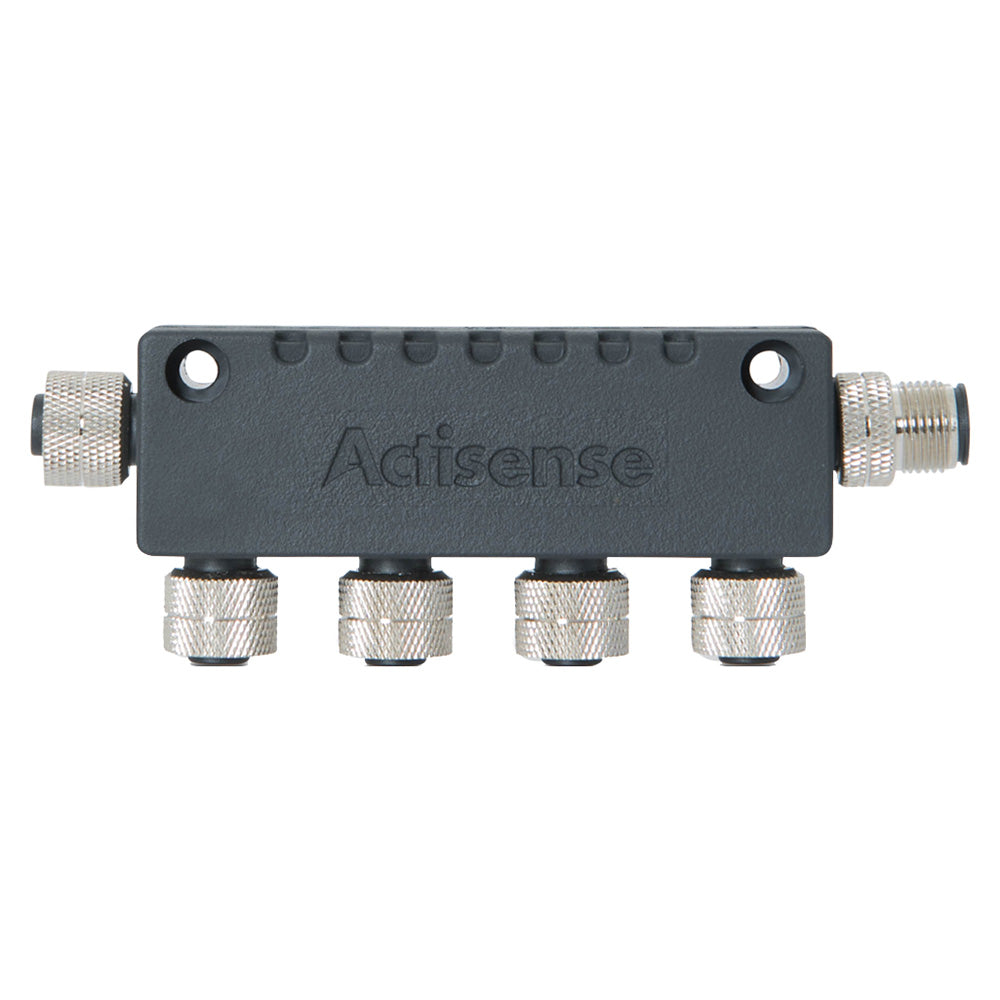

The Actisense N2K Micro 4 Way T-Piece is a compact connector for NMEA 2000 backbone installations that need several drop ports in one location. It gives installers four connection points from the backbone while taking up less space than using multiple separate T-pieces.

  • Use: Adds multiple drops or ports to an NMEA 2000 backbone
  • Approval: NMEA 2000 Approved
  • Compliance: RoHS compliant
  • Rated current: 4A
  • Rated voltage: 60V DC
  • Male contact: Brass, gold plated
  • Female contact: Phosphor bronze, gold plated
  • Contact carrier: PA66, 30% glass filled, black
  • Contact polarization: Standard M12 A polarization
  • Mating thread: M12
  • Screw cap: Brass, nickel plated
  • O-ring seal: Black rubber
  • Housing: Flame-retardant TPU to UL94V-0, halogen free
  • Internal housing shield: Copper foil
  • Weight: 105g
  • Protection: IP67 when mated
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -40°C to +85°C
  • Returns: Contact the manufacturer directly with issues or concerns; this product may not be returned to the original point of purchase

Specifications

Data InterfaceNMEA 2000
NMEA 2000 ConnectorsTee Connectors
BrandActisense
Manufacturer part #A2K-4WT
UPC5060998710010
Boxed dimensions5 x 3 x 2 in
Shipping weight0.25 lb
Country of originCHINA

Manuals & documents

Product brochurePDF ↓
