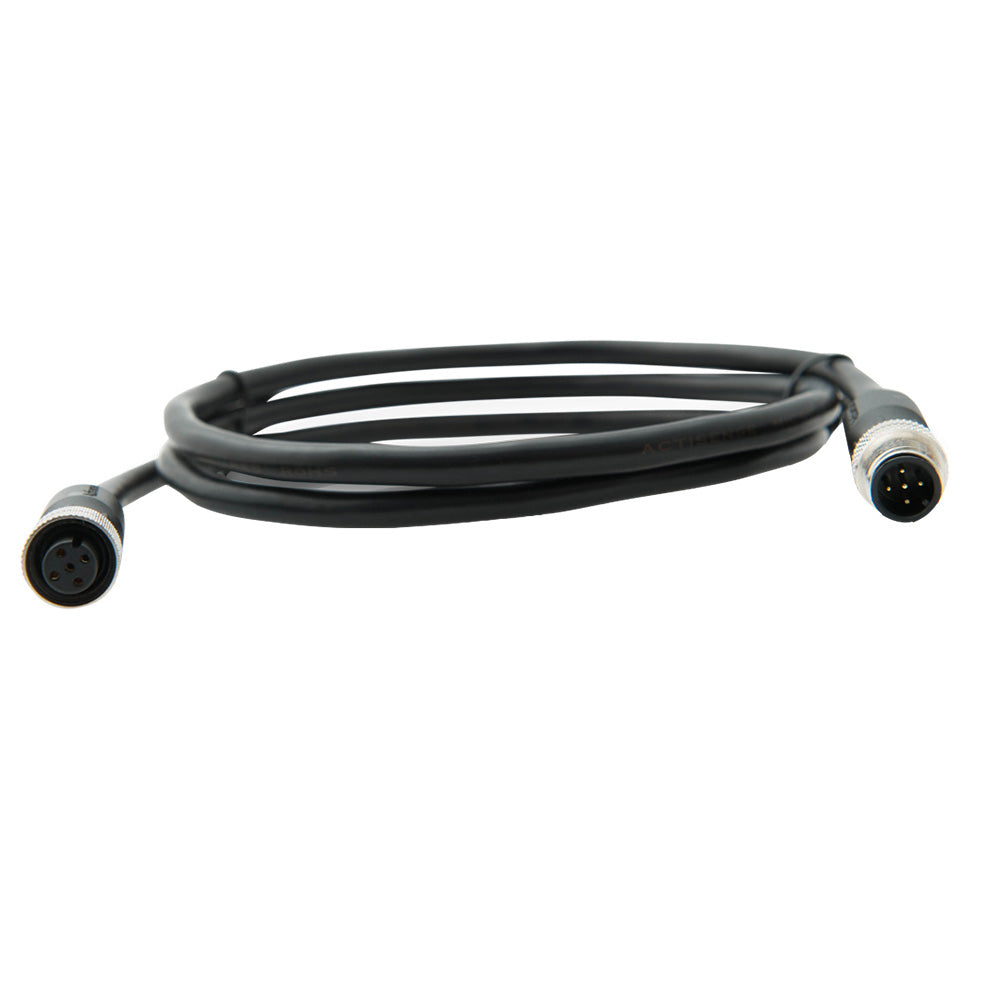

Actisense A2K-TDC-6M NMEA2000 Micro Cable Assembly - 6M

Actisense A2K-TDC-6M NMEA2000 Micro Cable Assembly - 6M

OM-ACTISENSE-A2KTDC6M-A2KTDC6M

$61.07
$61.07
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
6mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

The Actisense A2K-TDC-6M is a 6-meter NMEA 2000 Micro cable assembly for marine network installations. It can be used as a drop cable from a backbone or as part of a backbone extension, using Actisense UL-certified cable with waterproof construction.

  • Model: A2K-TDC-6M
  • Length: 6M
  • Network type: NMEA 2000 Micro cable assembly
  • Rated current: 3A
  • Rated voltage: 60VDC
  • Protection: IP67 when mated
  • Weight: 430g
  • Contact polarization: Standard M12 “A” polarization
  • Mating thread: M12
  • Male contact: Brass, gold-plated
  • Female contact: Phosphor bronze, gold plated
  • Contact carrier: Black PBT
  • Screw cap: Nickel plated brass
  • O-ring seal: Black rubber
  • Housing: Black PVC
  • Power pair: 22 AWG, 19-strand tinned copper
  • Data pair: 24 AWG, 19-strand tinned copper
  • Drain: 22 AWG, 19-strand tinned copper
  • Braid: 37 AWG tinned copper
  • Jacket: 0.8mm nominal black PVC
  • Jacket outer diameter: 6.85mm ±0.254mm
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -40°C to +85°C
  • NMEA 2000 guidance: Lite cable can form a backbone up to 100 meters; maximum drop cable length is 6 meters; total drop lengths must not exceed 72 meters

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)6m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandActisense
Manufacturer part #A2K-TDC-6M
UPC5060998710270
Boxed dimensions6 x 6 x 2 in
Shipping weight0.9 lb
Country of originCHINA
