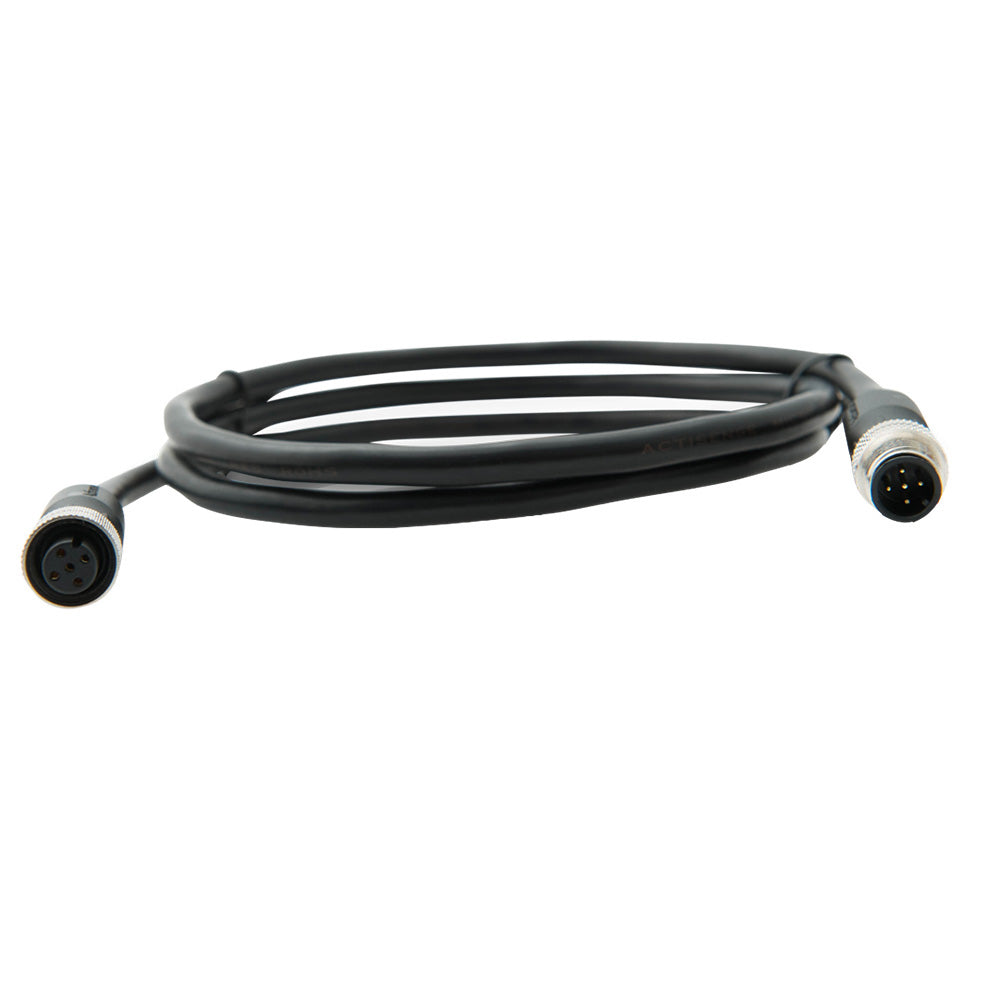

Actisense A2K-TDC-5M NMEA2000 Micro Cable Assembly - 5M

Actisense A2K-TDC-5M NMEA2000 Micro Cable Assembly - 5M

OM-ACTISENSE-A2KTDC5M-A2KTDC5M

$56.95
$56.95
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
5mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

The Actisense A2K-TDC-5M is a 5 meter NMEA 2000 Micro cable assembly for marine network installations. It can be used as a drop cable from an NMEA 2000 backbone or as part of a backbone extension within the stated network limits.

  • Length: 5M
  • Use: NMEA 2000 drop cable or backbone cable extension
  • Rated current: 3A
  • Rated voltage: 60VDC
  • Contacts: brass gold plated male contact; phosphor bronze gold plated female contact
  • Contact carrier: black PBT
  • Polarization: standard M12 A polarization
  • Mating thread: M12
  • Screw cap: nickel plated brass
  • O-ring seal: black rubber
  • Housing: black PVC
  • Power pair: 22 AWG, 19-strand tinned copper
  • Data pair: 24 AWG, 19-strand tinned copper
  • Drain: 22 AWG, 19-strand tinned copper
  • Braid: 37 AWG tinned copper
  • Jacket: black PVC, 0.8 mm nominal
  • Jacket outer diameter: 6.85 mm ±0.254 mm
  • Weight: 370 g
  • Protection: IP67 when mated
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -40°C to +85°C
  • Network limits: Lite backbone up to 100 meters; maximum drop cable length 6 meters; total drop lengths must not exceed 72 meters
  • Returns:

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)5m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandActisense
Manufacturer part #A2K-TDC-5M
UPC5060998710263
Boxed dimensions7 x 6 x 1 in
Shipping weight0.8 lb
Country of originCHINA
