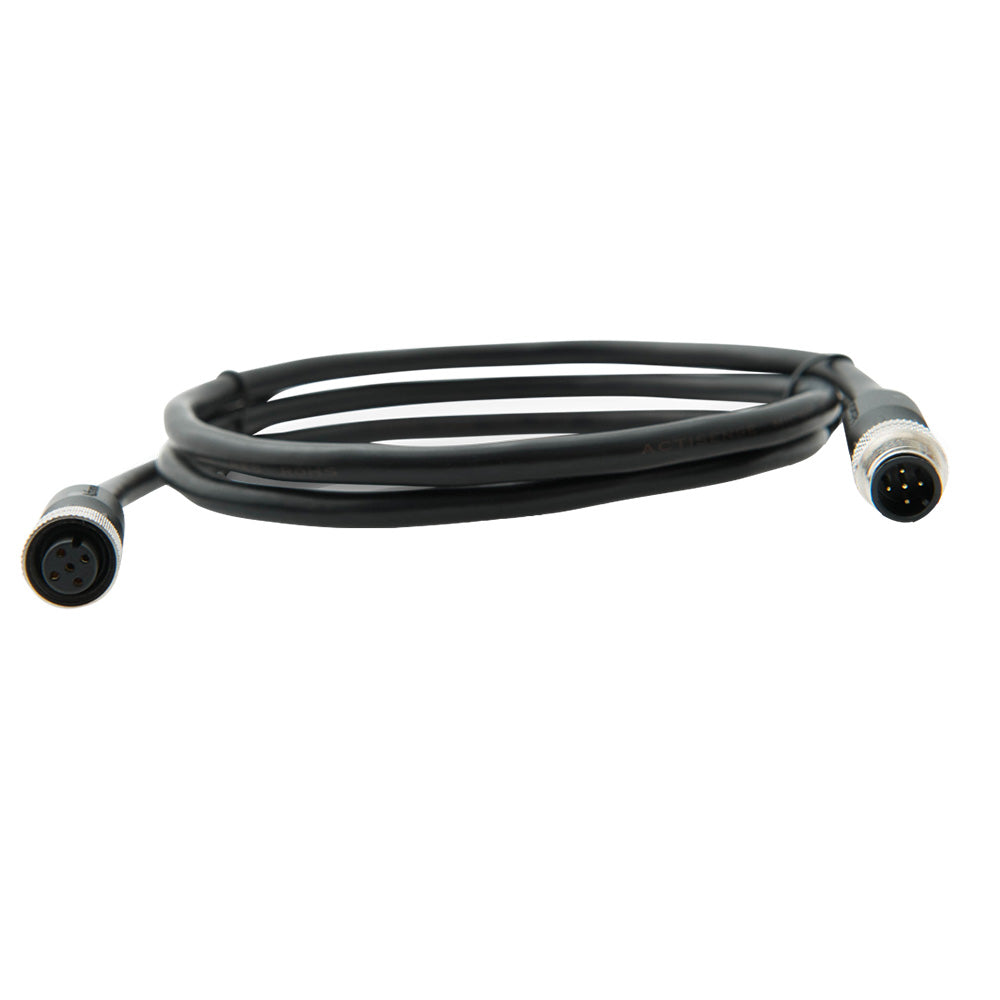

Actisense A2K-TDC-4M NMEA2000 Micro Cable Assembly - 4M

Actisense A2K-TDC-4M NMEA2000 Micro Cable Assembly - 4M

OM-ACTISENSE-A2KTDC4M-A2KTDC4M

$52.83
$52.83
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Actisense Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
4mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

The Actisense A2K-TDC-4M is a 4 meter NMEA 2000 Micro cable assembly for marine electronics networks. It can be used as a drop cable from a NMEA 2000 backbone or as part of a backbone extension within the stated NMEA 2000 Lite cable limits.

  • Model: A2K-TDC-4M
  • Length: 4 meters
  • Network type: NMEA 2000 Micro cable assembly
  • Use: Drop cable or backbone cable extension
  • Cable construction: Five wires in a waterproof cable: power, ground, two signal wires, and drain wire
  • Shielding: Drain wire connects to the cable shield to help protect wiring from external RFI and reduce cable RFI emission
  • Rated current: 3A
  • Rated voltage: 60VDC
  • Contacts: Brass gold plated male contact; phosphor bronze gold plated female contact
  • Contact carrier: Black PBT
  • Polarization: Standard M12 A polarization
  • Mating thread: M12
  • Screw cap: Nickel plated brass
  • O-ring seal: Black rubber
  • Housing: Black PVC
  • Power pair: 22 AWG, 19-strand tinned copper
  • Data pair: 24 AWG, 19-strand tinned copper
  • Drain: 22 AWG, 19-strand tinned copper
  • Braid: 37 AWG tinned copper
  • Jacket: Black PVC, 0.8 mm nominal
  • Jacket outer diameter: 6.85 mm +/- 0.254 mm
  • Weight: 287 g
  • Protection: IP67 when mated
  • Operating temperature: -20 degrees C to +70 degrees C
  • Storage temperature: -40 degrees C to +85 degrees C
  • NMEA 2000 Lite limits: Backbone up to 100 meters; maximum drop cable length 6 meters; total drop lengths must not exceed 72 meters

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)4m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandActisense
Manufacturer part #A2K-TDC-4M
UPC5060998710256
Boxed dimensions6 x 5 x 1 in
Shipping weight0.65 lb
Country of originCHINA
