• Actisense A2K-TDC-3M NMEA2000 Micro Cable Assembly - 3M
1 1

Actisense

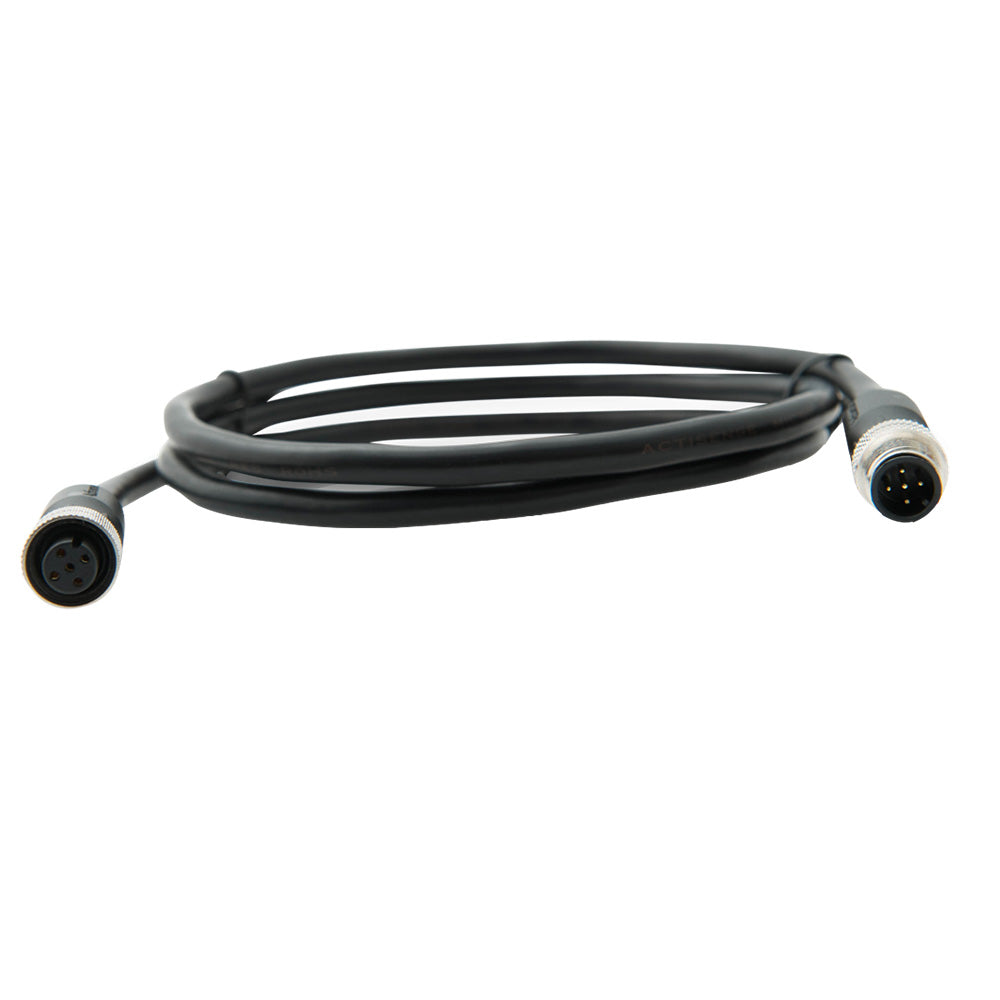

Actisense A2K-TDC-3M NMEA2000 Micro Cable Assembly - 3M

Actisense A2K-TDC-3M NMEA2000 Micro Cable Assembly - 3M

OM-ACTISENSE-A2KTDC3M-A2KTDC3M

$48.71
$48.71
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Actisense Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
3mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

The Actisense A2K-TDC-3M is a 3 meter NMEA 2000 Micro cable assembly for marine electronics networks. It can be used as a drop cable from a NMEA 2000 backbone or as part of a backbone extension within the stated Lite cable limits.

  • Model: A2K-TDC-3M
  • Length: 3 m
  • Network type: NMEA 2000 Micro cable assembly
  • Rated current: 3A
  • Rated voltage: 60VDC
  • Protection: IP67 when mated
  • Contacts: Brass gold-plated male contact and phosphor bronze gold-plated female contact
  • Contact carrier: Black PBT
  • Polarization: Standard M12 A polarization
  • Mating thread: M12
  • Screw cap: Nickel-plated brass
  • O-ring seal: Black rubber
  • Housing: Black PVC
  • Power pair: 22 AWG, 19-strand tinned copper
  • Data pair: 24 AWG, 19-strand tinned copper
  • Drain: 22 AWG, 19-strand tinned copper
  • Braid: 37 AWG tinned copper
  • Jacket: Black PVC, 0.8 mm nominal thickness
  • Jacket outer diameter: 6.85 mm ±0.254 mm
  • Weight: 228 g
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -40°C to +85°C
  • Lite backbone guidance: Up to 100 m backbone length, with drop cable length up to 6 m and total drop lengths not exceeding 72 m
  • Return note: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)3m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandActisense
Manufacturer part #A2K-TDC-3M
UPC5060998710249
Boxed dimensions7 x 7 x 1 in
Shipping weight0.5 lb
Country of originCHINA
