Actisense

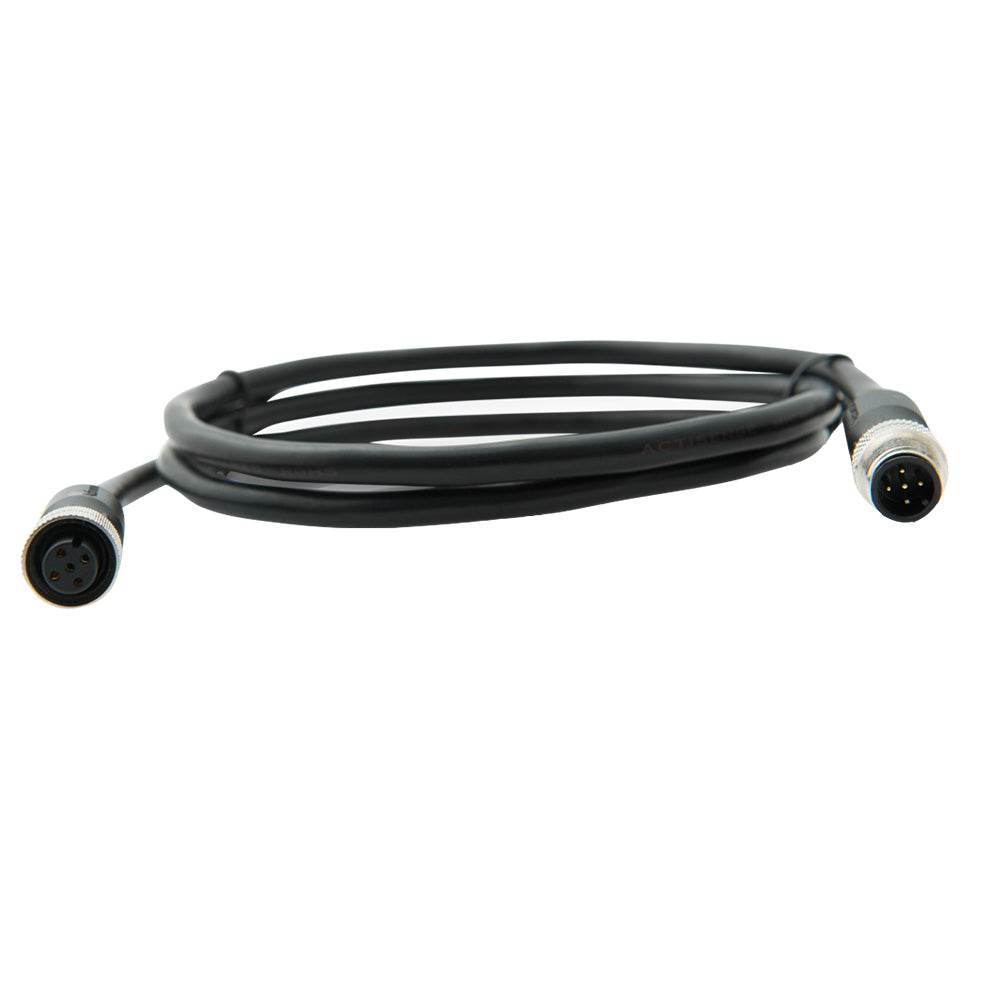

Actisense A2K-TDC-1M NMEA2000 Micro Cable Assembly - 1M

Actisense A2K-TDC-1M NMEA2000 Micro Cable Assembly - 1M

SKU:OM-ACTISENSE-A2KTDC1M-A2KTDC1M

Regular price $40.47
Regular price Sale price $40.47
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left

Quantity
Free standard shipping · every U.S. order, no minimum
Authorized Actisense Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
1mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

The Actisense A2K-TDC-1M is a 1 meter NMEA 2000 Micro cable assembly for building or extending a marine electronics network. It can be used as a drop cable from the backbone or as part of the backbone, with a waterproof five-wire cable construction.

  • Model: A2K-TDC-1M
  • Length: 1M
  • Network type: NMEA 2000 Micro cable assembly
  • Use: drop cable from a NMEA 2000 backbone or backbone extension
  • Cable design: five wires in one waterproof cable
  • Conductors: power, ground, two signal data wires, and drain wire
  • Shielding: drain wire connects to the cable shield to help protect against external RFI and reduce cable RFI emission
  • Backbone guidance: NMEA 2000 Lite cable can create a backbone up to 100 meters
  • Drop cable guidance: maximum drop length is 6 meters, with total drop lengths not exceeding 72 meters
  • Rated current: 3A
  • Rated voltage: 60VDC
  • Male contact: brass, gold-plated
  • Female contact: phosphor bronze, gold plated
  • Contact carrier: black PBT
  • Contact polarization: standard M12 A polarization
  • Mating thread: M12
  • Screw cap: nickel plated brass
  • O-ring seal: black rubber
  • Housing: black PVC
  • Power pair: 22 AWG, 19-strand tinned copper
  • Data pair: 24 AWG, 19-strand tinned copper
  • Drain: 22 AWG, 19-strand tinned copper
  • Braid: 37 AWG tinned copper
  • Jacket: black PVC, 0.8mm nominal
  • Jacket outer diameter: 6.85mm ±0.254mm
  • Weight: 105g
  • Protection: IP67 when mated
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -40°C to +85°C
  • Return note: this product may not be returned to the original point of purchase; contact the manufacturer for issues or concerns

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)1m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandActisense
Manufacturer part #A2K-TDC-1M
UPC5060998710225
Boxed dimensions5 x 5 x 1 in
Shipping weight0.2 lb
Country of originCHINA
