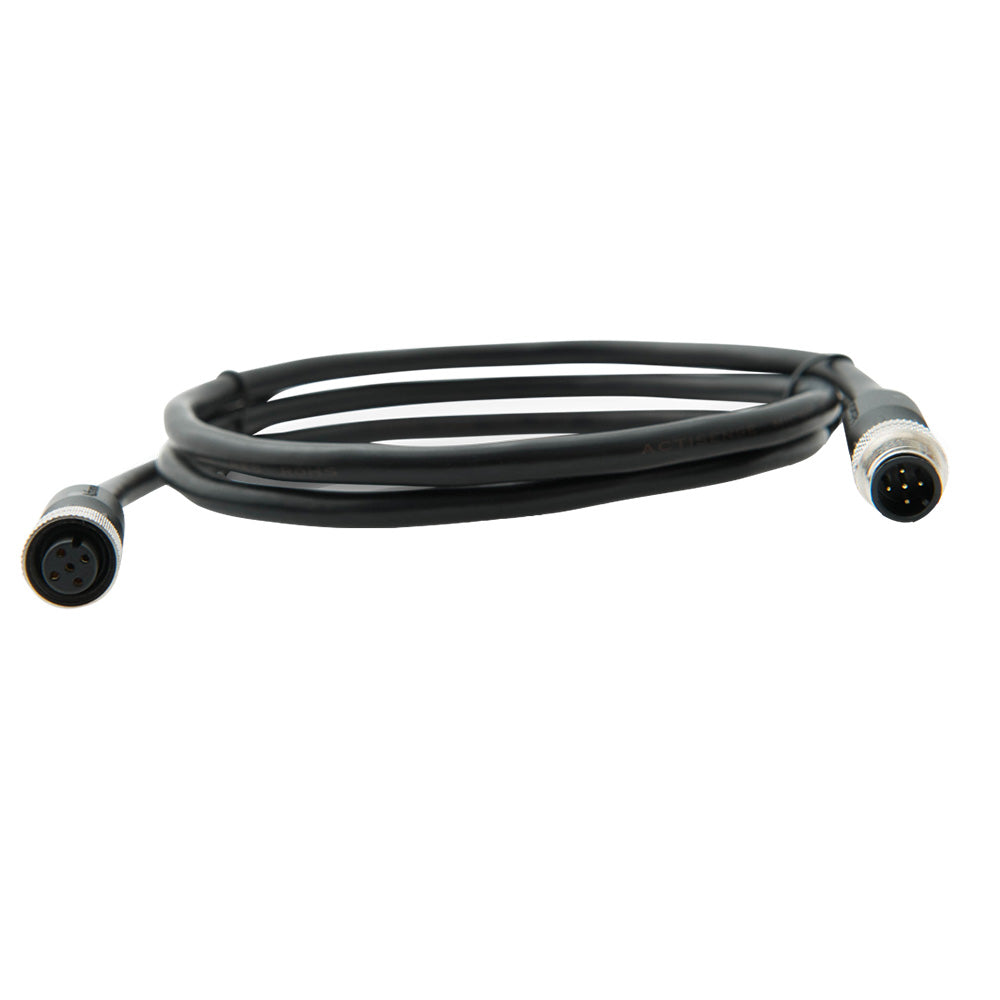

Actisense A2K-TDC-10M NMEA2000 Micro Cable Assembly - 10M

Actisense A2K-TDC-10M NMEA2000 Micro Cable Assembly - 10M

OM-ACTISENSE-A2KTDC10M-A2KTDC10M

$74.46
$75.00 $74.46
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Actisense Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
10mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

The Actisense A2K-TDC-10M is a 10-meter NMEA 2000 Micro cable assembly for building or extending a marine electronics network. It can be used as part of the backbone or as a drop cable where the required drop length stays within NMEA 2000 limits.

The cable uses Actisense UL-certified cable construction with separate conductors for power, ground, data, and drain inside a waterproof jacket. Shielding helps protect the network wiring from radio frequency interference when installed with compatible NMEA 2000 connectors.

  • Model: A2K-TDC-10M
  • Length: 10 meters
  • Network type: NMEA 2000 Micro cable assembly
  • Use: Backbone extension or drop cable from an NMEA 2000 backbone
  • Rated current: 3A
  • Rated voltage: 60VDC
  • Male contact: Brass, gold-plated
  • Female contact: Phosphor bronze, gold-plated
  • Contact carrier: Black PBT
  • Contact polarization: Standard M12 A polarization
  • Mating thread: M12
  • Screw cap: Nickel-plated brass
  • O-ring seal: Black rubber
  • Housing: Black PVC
  • Power pair: 22 AWG, 19-strand tinned copper
  • Data pair: 24 AWG, 19-strand tinned copper
  • Drain: 22 AWG, 19-strand tinned copper
  • Braid: 37 AWG tinned copper
  • Jacket: Black PVC, 0.8mm nominal thickness
  • Outer diameter: 6.85mm +/- 0.254mm
  • Weight: 688g
  • Protection rating: IP67 when mated
  • Operating temperature: -20C to +70C
  • Storage temperature: -40C to +85C
  • NMEA 2000 Lite backbone limit: Up to 100 meters
  • Maximum drop cable length: 6 meters
  • Total drop length limit: 72 meters

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)10m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandActisense
Manufacturer part #A2K-TDC-10M
UPC5060998710218
Boxed dimensions6 x 6 x 2 in
Shipping weight1.5 lb
Country of originCHINA
