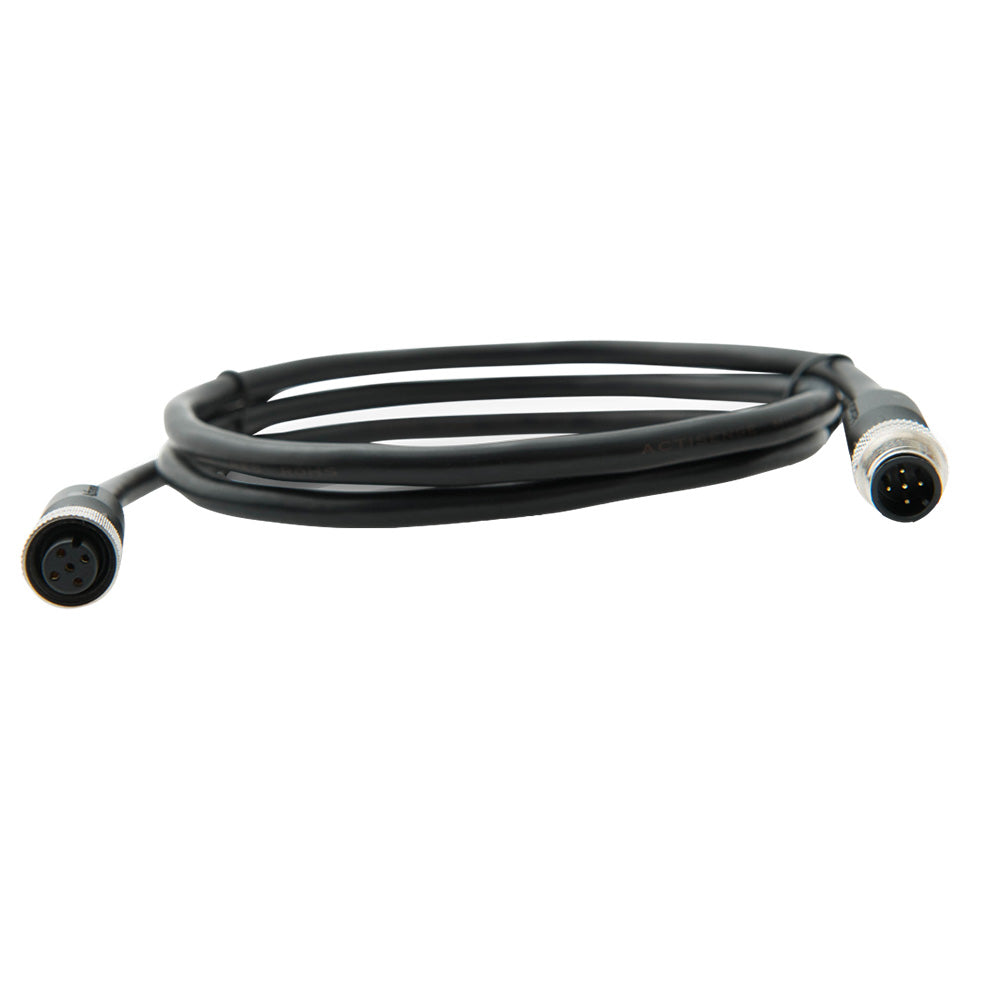

Actisense A2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5M

The Actisense A2K-TDC-0M5 is a 0.5 meter NMEA 2000 Micro cable assembly for marine electronics networks. It can serve as a short drop cable from a NMEA 2000 backbone or as part of a backbone extension where the network layout allows.

The cable uses Actisense UL-certified cable and contains the conductors required for NMEA 2000 power, ground, data, and shielding. Its waterproof construction and IP67 rating when mated make it suited to onboard installations where protected network connections are required.

• Model: A2K-TDC-0M5
• Length: 0.5M
• Use: NMEA 2000 drop cable or backbone cable extension
• Rated current: 3A
• Rated voltage: 60VDC
• Male contact: Brass, gold-plated
• Female contact: Phosphor bronze, gold plated
• Contact carrier: Black PBT
• Contact polarization: Standard M12 A polarization
• Mating thread: M12
• Screw cap: Brass, nickel plated
• O-ring seal: Black rubber
• Housing: Black PVC
• Power pair: 22 AWG, 19-strand tinned copper
• Data pair: 24 AWG, 19-strand tinned copper
• Drain: 22 AWG, 19-strand tinned copper
• Braid: 37 AWG tinned copper
• Jacket: Black PVC, 0.8mm nominal
• Jacket outer diameter: 6.85mm +/-0.254mm
• Weight: 67g
• Protection: IP67 when mated
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• NMEA 2000 guidance: Lite backbone up to 100 meters, maximum drop cable length 6 meters, total drop lengths not to exceed 72 meters
