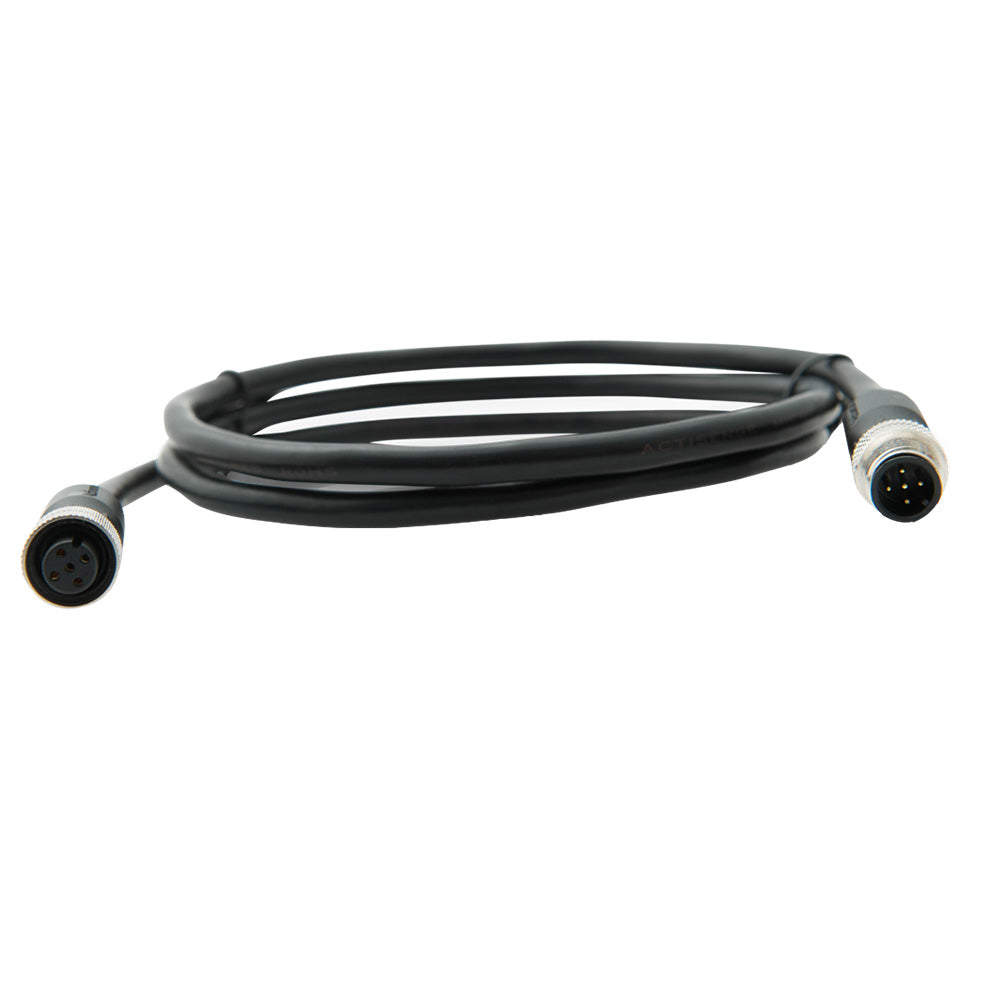

Actisense A2K-TDC-0M25 NMEA2000 Micro Cable Assembly - 0.25M

Actisense A2K-TDC-0M25 NMEA2000 Micro Cable Assembly - 0.25M

OM-ACTISENSE-A2KTDC0M25-A2KTDC0M25

$34.71
$34.71
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 10 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
0.25mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

The Actisense A2K-TDC-0M25 is a 0.25 meter NMEA 2000 micro cable assembly for marine electronics networks. It can be used as a drop cable from a NMEA 2000 backbone or as part of a backbone extension within the stated network limits.

  • Brand: Actisense
  • Model: A2K-TDC-0M25
  • Product type: NMEA 2000 micro cable assembly
  • Length: 0.25M
  • Rated current: 3A
  • Rated voltage: 60VDC
  • Male contact: Brass, gold plated
  • Female contact: Phosphor bronze, gold plated
  • Contact carrier: PBT, black
  • Contact polarization: Standard M12 A polarization
  • Mating thread: M12
  • Screw cap: Brass, nickel plated
  • O-ring seal: Rubber, black
  • Housing: PVC, black
  • Power pair: 22 AWG, 19-strand tinned copper
  • Data pair: 24 AWG, 19-strand tinned copper
  • Drain: 22 AWG, 19-strand tinned copper
  • Braid: 37 AWG tinned copper
  • Jacket material: 0.8mm nominal PVC, black
  • Jacket outer diameter: 6.85mm +/-0.254mm
  • Weight: 51g
  • Protection: IP67 when mated
  • Operating temperature: -20C to +70C
  • Storage temperature: -40C to +85C
  • Network limits: NMEA 2000 Lite backbone up to 100 meters; maximum drop cable length 6 meters; total drop lengths up to 72 meters

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)0.25m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandActisense
Manufacturer part #A2K-TDC-0M25
UPC5060998710195
Boxed dimensions9 x 5 x 1 in
Shipping weight0.1 lb
Country of originCHINA
