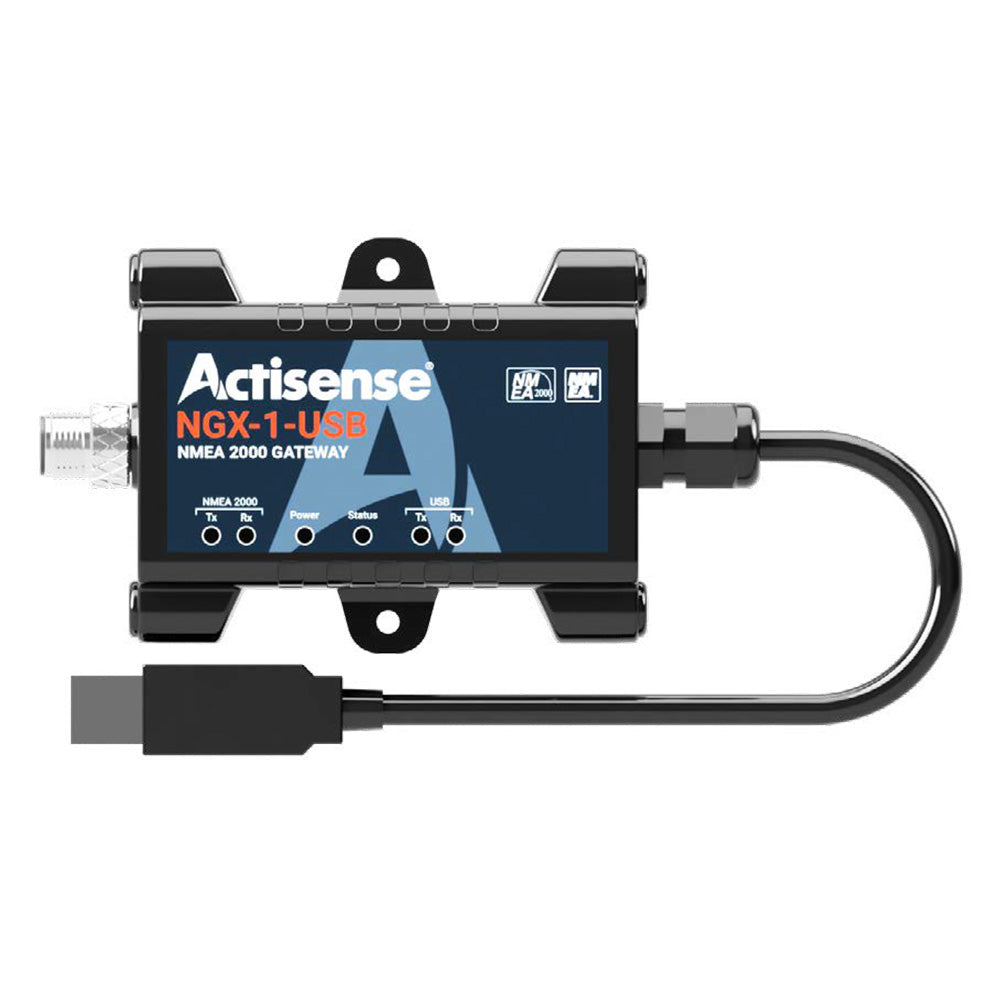

Actisense 0183 to N2K Gateway w/PC Interface, USB Connection
Actisense 0183 to N2K Gateway w/PC Interface, USB Connection
SKU:OM-ACTISENSE-0183N2KGATEWAY-NGX1USB
Low stock: 5 left
Couldn't load pickup availability
Overview
The Actisense NGX-1 is a gateway for connecting NMEA 0183, NMEA 2000, and PC-based marine electronics. It can be configured as an NMEA 2000 to PC interface or as a bi-directional NMEA 0183 to NMEA 2000 conversion gateway.
- Product type: 0183 to N2K gateway with PC interface
- Connection: USB connection
- Modes: NMEA 2000 to PC interface or bi-directional NMEA 0183 to NMEA 2000 gateway
- Software support: Works with Actisense NMEA Reader and Actisense Toolkit
- PC application support: Interfaces with applications including TimeZero for NMEA 2000 and OpenCPN for NMEA 0183
- NMEA 2000 support: Supports every available PGN in the NMEA 2000 standard
- Conversion support: Includes a wide conversion library, including AIS conversions
- Diagnostics: Multiple diagnostic LEDs and NMEA 2000 network diagnosis through NMEA Reader software
- Isolation: Fully isolated to help prevent ground loops
- Data rate: Up to 230,400 baud
- Fast heading: Supports Fast Heading at 10Hz
- Supply voltage: 9 to 30V DC from the NMEA 2000 port
- Supply current: 62mA at 9V DC
- LEN: 2
- NMEA 2000 port speed: 250kbps
- NMEA 2000 connector: M12 male, A-coded
- USB compatibility: USB 1.1, 2.0, and 3.0
- USB speed: 4800 to 230400 baud
- USB connector: Male Type A plug molded onto cable
- Cable length: 1.8m
- Isolation testing: NMEA 2000 to ISO port uses IsoDrive and is Hi-Pot tested to 1000V; NMEA 2000 to USB port has galvanic isolation and is Hi-Pot tested to 1000V
Specifications
| Data Interface | NMEA 0183 |
|---|---|
| Brand | Actisense |
| Manufacturer part # | NGX-1-USB |
| UPC | 5060998710560 |
| Boxed dimensions | 6 x 6 x 2 in |
| Shipping weight | 0.5 lb |
| Country of origin | GB |
