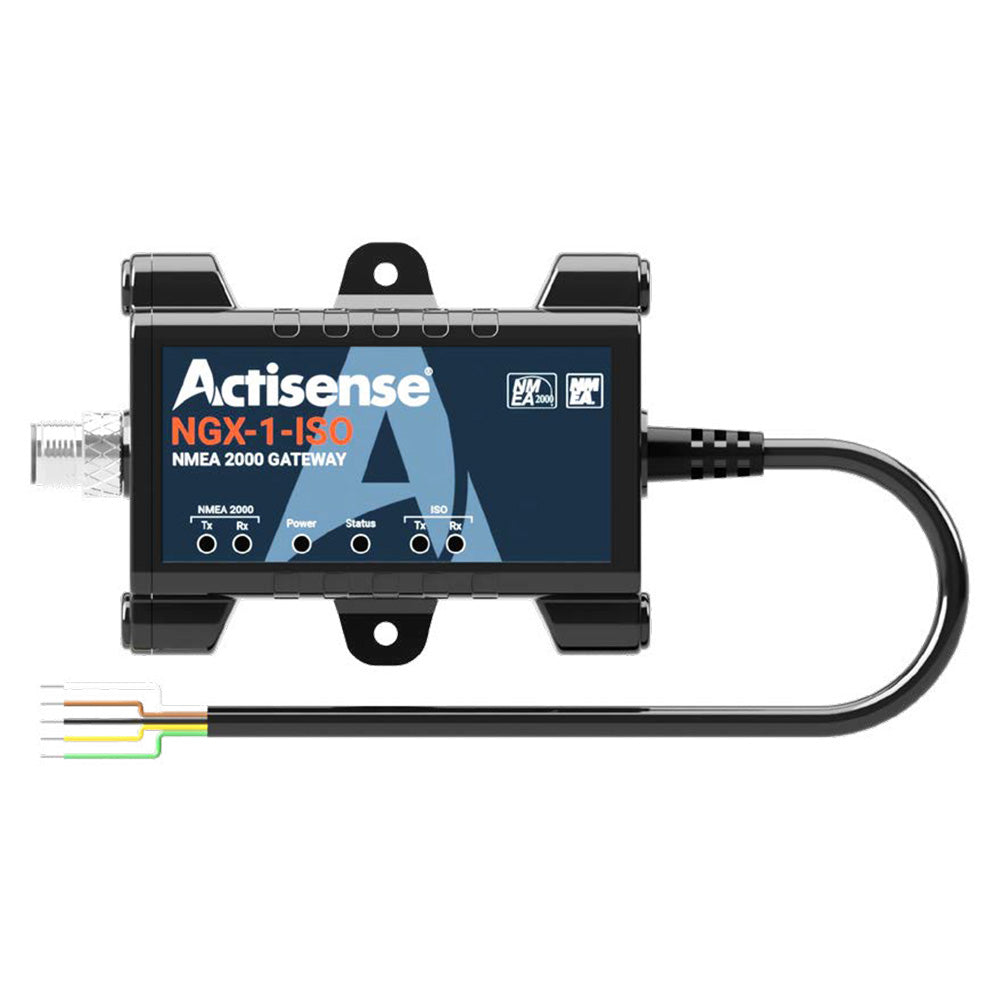

Actisense 0183 to N2K Gateway w/PC Interface, ISO Connection

Actisense 0183 to N2K Gateway w/PC Interface, ISO Connection

OM-ACTISENSE-0183N2KGATEWAY-NGX1ISO

$258.79
$287.55 $258.79
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 5 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NMEA 0183Data Interface

Bring older instruments into a newer boat network with the Actisense NGX-1 gateway, or configure it to connect a PC to NMEA 2000. It supports two-way conversion between NMEA 0183 and NMEA 2000, letting equipment exchange navigation data across the two standards.

Key features

  • Selectable PC interface and conversion modes let you configure the gateway for your installation.
  • Two-way data conversion, including AIS, helps retain NMEA 0183 instruments when upgrading a network.
  • NMEA Reader lets you inspect network data and converted NMEA 0183 data for troubleshooting.
  • An OPTO-isolated input and ISO-Drive output provide isolated interfacing with RS232 or RS422 equipment.
  • Actisense Toolkit lets you set transmit and receive lists and transmission rates.
  • Diagnostic LEDs help with checks, while a rule-enforcing firewall controls communication between the PC and NMEA 2000 bus.

Specifications

  • Brand: Actisense
  • Model: NGX-1
  • Version: ISO connection with PC interface
  • Operating modes: NMEA 2000 to/from PC; NMEA 0183 to/from NMEA 2000
  • NMEA 2000 PGN support: All available PGNs in the standard
  • Supply voltage, NMEA 2000 port: 9–30V DC
  • Supply current, NMEA 2000 port: 62mA at 9V DC
  • Load Equivalent Number: 2
  • NMEA 2000 port speed: 250kbps
  • NMEA 2000 connector: M12 male, A-coded
  • ISO port compatibility: NMEA 0183, RS232, RS422 and RS485 listener
  • ISO port baud rate: 4800–230400 baud
  • Output voltage drive: At least 2.1V differential into 100Ω
  • Maximum output current drive: 20mA
  • Output protection: Short circuit and ESD
  • Continuous input voltage tolerance: -15V to +15V
  • Fast Heading support: 10Hz

Good to know

Supported PC applications include TimeZero using NMEA 2000 and OpenCPN using NMEA 0183. The NGX-1 also enables configuration of Actisense EMU-1, NGW-1 and NGX-1 devices through Actisense Toolkit. Free NMEA Reader software is provided.

Specifications

Data InterfaceNMEA 0183
BrandActisense
Manufacturer part #NGX-1-ISO
UPC5060998710553
Boxed dimensions6 x 5 x 1 in
Shipping weight0.35 lb
Country of originUNITED KINGDOM
